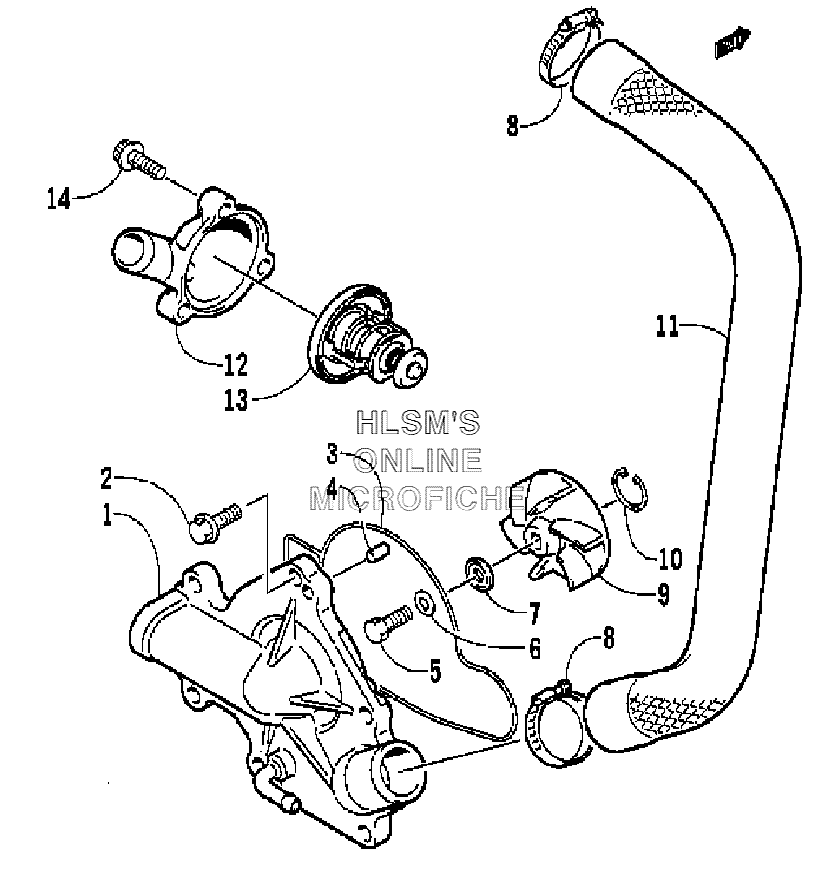

WATER PUMP/WATER MANIFOLD для Arctic Cat Firecat 600 Sno Pro 1.375'' (Red) - 2004 года выпуска
-
№АртикулНазвание
-
13006-355 COVER, WATER PUMPCOVER, WATER PUMP
-
23004-341 BOLTBOLT
-
33006-356 O-RING, WATER PUMP COVERO-RING, WATER PUMP COVER
-
43005-899 PIN, DOWELPIN, DOWEL
-
53003-426 BOLTBOLT
-
63003-432 GASKETGASKET
-
73003-431 WASHERWASHER
-
83006-324 CLAMPCLAMP
-
93005-697 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
103004-009 CIRCLIPCIRCLIP
-
113006-521 HOSE, WATER INLETHOSE, WATER INLET
-
123006-704 CAP, THERMOSTATCAP, THERMOSTAT
-
133006-358 THERMOSTATTHERMOSTAT
-
143004-512 BOLTBOLT
