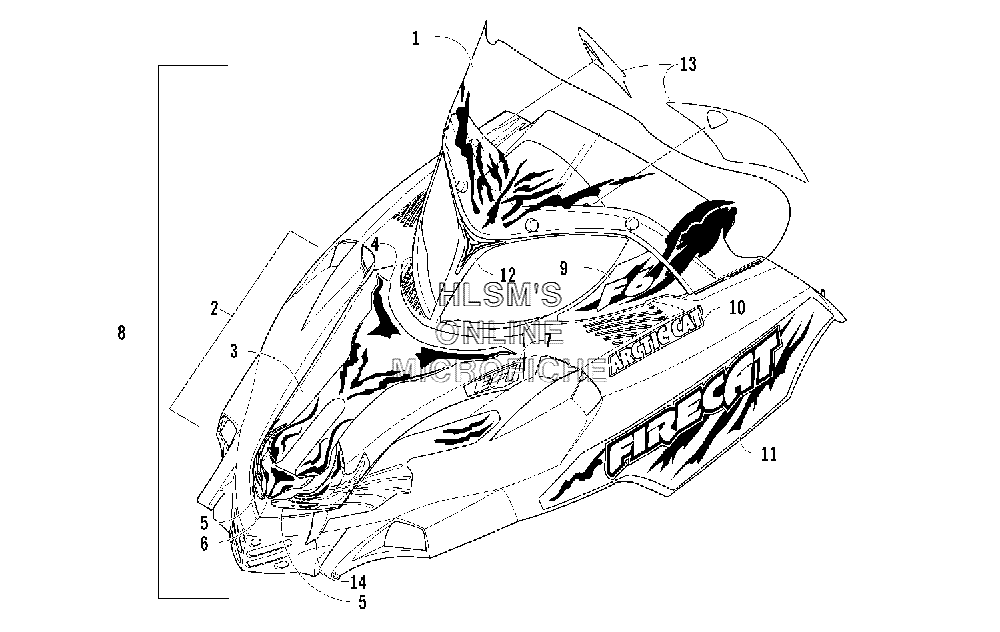

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 600 Sno Pro 1.375'' (Tiger Green) - 2004 года выпуска
-
№АртикулНазвание
-
13606-273 WINDSHIELDWINDSHIELD
-
21718-526 COVER, HOOD W/DECALS (INC. 3, 6)COVER, HOOD W/DECALS (INC. 3, 6)
-
32706-030 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-786 DECAL, COVER, CRESTDECAL, COVER, CREST
-
55611-788 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
55611-789 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
65611-787 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
81718-473 HOOD W/DECALS (INC. 9, 14)HOOD W/DECALS (INC. 9, 14)
-
95611-700 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
95611-701 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
105611-780 DECAL, HOOD, VENTDECAL, HOOD, VENT
-
115611-784 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
115611-785 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
125611-781 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
135611-746 DECAL, HOOD, CONSOLE (RIGHT)DECAL, HOOD, CONSOLE (RIGHT)
-
135611-747 DECAL, HOOD, CONSOLE (LEFT)DECAL, HOOD, CONSOLE (LEFT)
-
145611-782 DECAL, HOOD (FRONT) (RIGHT)DECAL, HOOD (FRONT) (RIGHT)
-
145611-783 DECAL, HOOD (FRONT) (LEFT)DECAL, HOOD (FRONT) (LEFT)
