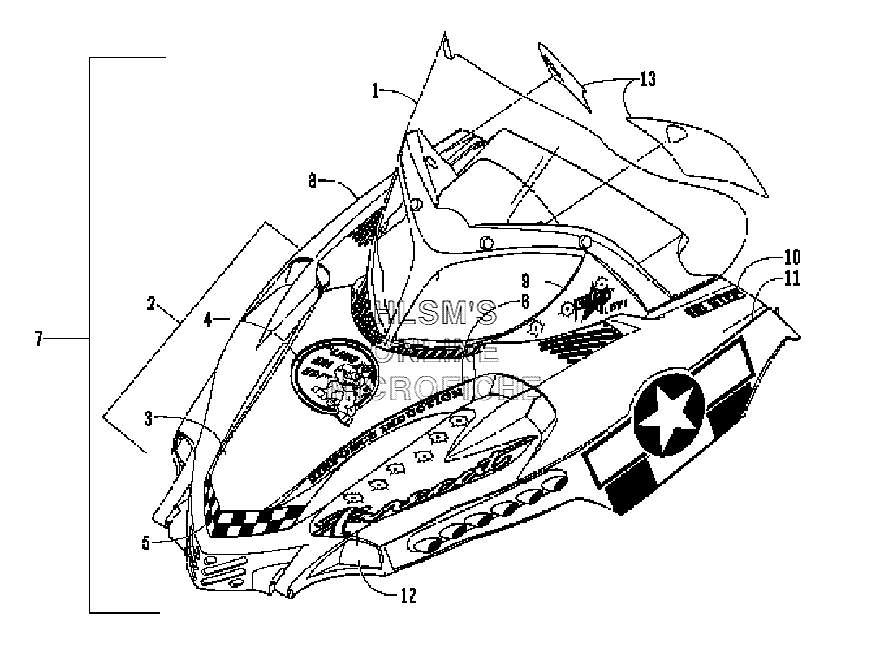

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 EFI (Fighter Black) - 2004 года выпуска
-
№АртикулНазвание
-
12606-834 WINDSHIELDWINDSHIELD
-
21718-516 COVER, HOOD W/DECALS (INC. 3, 6)COVER, HOOD W/DECALS (INC. 3, 6)
-
32706-041 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-735 DECAL, COVER, CRESTDECAL, COVER, CREST
-
55611-693 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
65611-736 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
65611-737 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
71718-509 HOOD W/DECALS (INC. 8, 13)HOOD W/DECALS (INC. 8, 13)
-
81718-237 HOOD W/O DECALSHOOD W/O DECALS
-
95611-732 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
95611-733 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
105611-734 DECAL, HOOD, VENTDECAL, HOOD, VENT
-
115611-718 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
115611-719 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
125611-720 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
125611-721 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
135611-722 DECAL, HOOD, CONSOLE (RIGHT)DECAL, HOOD, CONSOLE (RIGHT)
-
135611-723 DECAL, HOOD, CONSOLE (LEFT)DECAL, HOOD, CONSOLE (LEFT)
