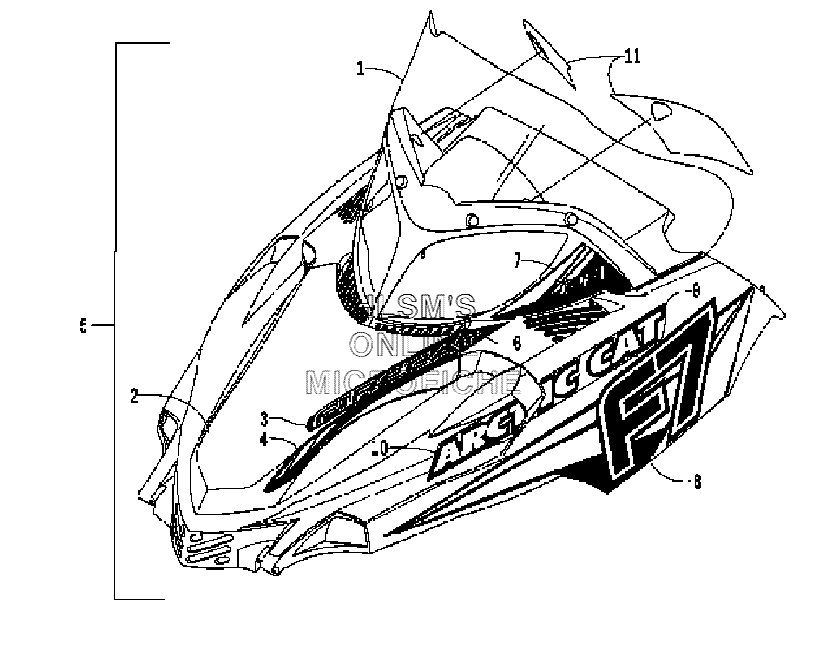

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1'' (Team Arctic Red) - 2004 года выпуска
-
№АртикулНазвание
-
13606-019 WINDSHIELDWINDSHIELD
-
21718-499 COVER, HOOD (INC. 3, 4)COVER, HOOD (INC. 3, 4)
-
35611-654 DECAL, COVER (UPPER/RIGHT)DECAL, COVER (UPPER/RIGHT)
-
35611-655 DECAL, COVER (UPPER/LEFT)DECAL, COVER (UPPER/LEFT)
-
45611-678 DECAL, COVER (LOWER/RIGHT)DECAL, COVER (LOWER/RIGHT)
-
45611-679 DECAL, COVER (LOWER/LEFT)DECAL, COVER (LOWER/LEFT)
-
51718-496 HOOD W/DECALS (INC. 6, 11)HOOD W/DECALS (INC. 6, 11)
-
65611-656 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
65611-657 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
75611-652 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
75611-653 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
85611-648 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
85611-649 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
95611-676 DECAL, HOOD, VENT (REAR/RIGHT)DECAL, HOOD, VENT (REAR/RIGHT)
-
95611-677 DECAL, HOOD, VENT (REAR/LEFT)DECAL, HOOD, VENT (REAR/LEFT)
-
105611-674 DECAL, HOOD, VENT (FRONT/RIGHT)DECAL, HOOD, VENT (FRONT/RIGHT)
-
105611-675 DECAL, HOOD, VENT (FRONT/LEFT)DECAL, HOOD, VENT (FRONT/LEFT)
-
115611-650 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
115611-651 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
