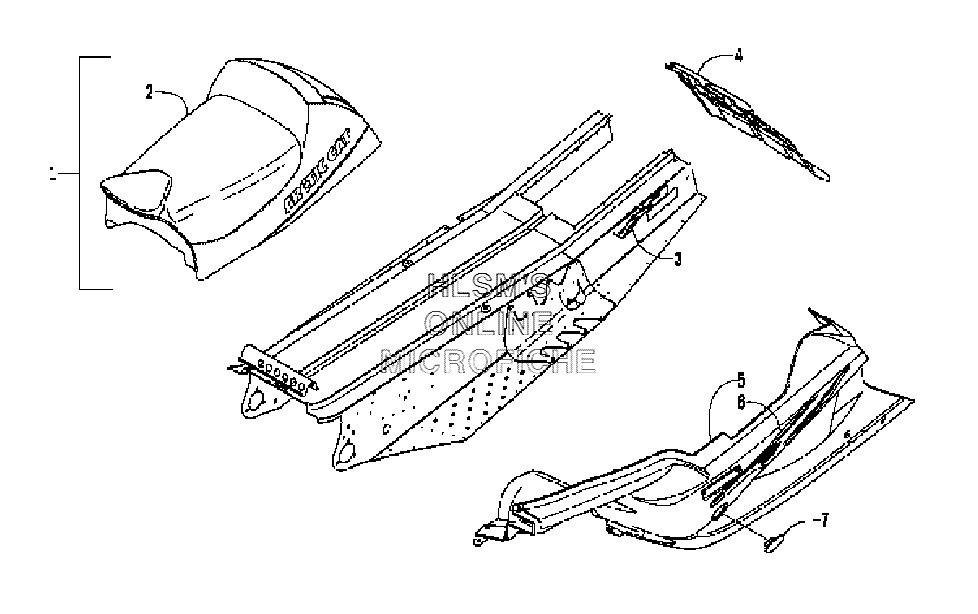

BELLY PAN- SEAT- TUNNEL- AND SNOWFLAP для Arctic Cat Firecat 700 EFI (Tiger Green) - 2004 года выпуска
-
№АртикулНазвание
-
17997-682 COMPLETE SEAT ASSEMBLY (INC. 2)COMPLETE SEAT ASSEMBLY (INC. 2)
-
22706-487 COVER, SEATCOVER, SEAT
-
35611-626 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
35611-627 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
43606-333 SNOWFLAP W/DECALSSNOWFLAP W/DECALS
-
52606-348 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
52606-349 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
65611-790 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
65611-791 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
72606-350 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
