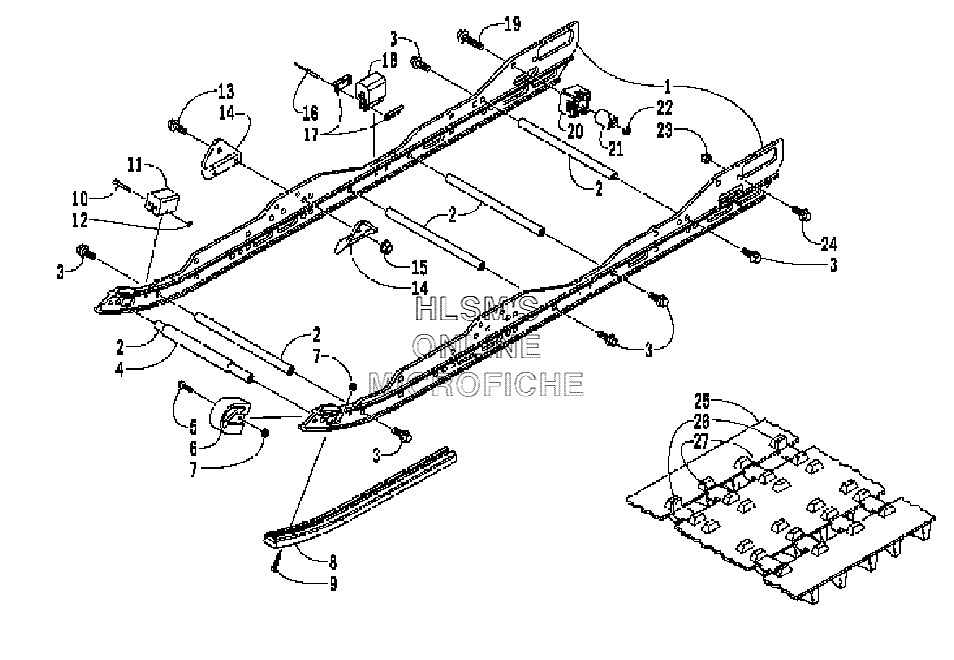

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
-7997-425 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12604-644 RAIL, FORMEDRAIL, FORMED
-
20604-930 AXLE, INNERAXLE, INNER
-
38020-223 SCREW, CAPSCREW, CAP
-
42604-281 SPACERSPACER
-
58020-042 SCREW, CAPSCREW, CAP
-
62604-544 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78047-366 NUT, LOCKNUT, LOCK
-
82604-543 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
100123-767 RIVET, SOLIDRIVET, SOLID
-
110104-631 PAD, SHOCKPAD, SHOCK
-
120123-766 NUT, PUSHNUT, PUSH
-
138020-131 SCREW, CAPSCREW, CAP
-
142604-593 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
158048-426 NUT, LOCKNUT, LOCK
-
168060-633 RIVETRIVET
-
170604-967 BRACKET, RETAININGBRACKET, RETAINING
-
180604-918 PAD, SHOCKPAD, SHOCK
-
198020-226 SCREW, CAPSCREW, CAP
-
202604-602 BLOCK ARM COUPLER (REAR)BLOCK ARM COUPLER (REAR)
-
212604-046 BUSHING ARM COUPLER (REAR)BUSHING ARM COUPLER (REAR)
-
228041-486 NUT, LOCKNUT, LOCK
-
238040-486 NUT, LOCKNUT, LOCK
-
248020-220 SCREW, CAPSCREW, CAP
-
251602-502 TRACK ASSEMBLY (INC. 26)TRACK ASSEMBLY (INC. 26)
-
261602-134 CLIP, GUIDECLIP, GUIDE
