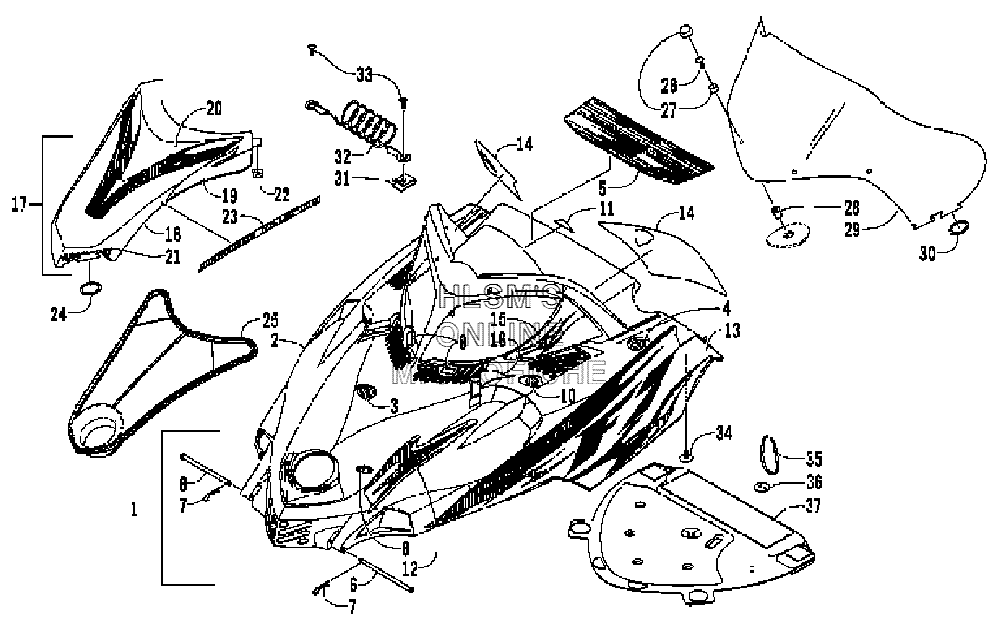

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1'' (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11718-423 HOOD W/DECALS (INC. 2, 16)HOOD W/DECALS (INC. 2, 16)
-
21718-270 HOOD W/O DECALS (INC. 3, 10)HOOD W/O DECALS (INC. 3, 10)
-
30717-169 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
40717-170 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-171 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
54611-496 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
61623-026 PIN, CLEVISPIN, CLEVIS
-
70623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
83606-130 FOIL, HOODFOIL, HOOD
-
96990-252 STRIP, VELCROSTRIP, VELCRO
-
106990-253 DISC, VELCRODISC, VELCRO
-
113611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
125611-378 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
125611-379 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
135611-372 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
135611-373 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
145611-380 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
145611-381 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
155611-376 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
155611-377 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
165611-334 DECAL, HOOD, VENT (RIGHT)DECAL, HOOD, VENT (RIGHT)
-
165611-335 DECAL, HOOD, VENT (LEFT)DECAL, HOOD, VENT (LEFT)
-
171718-426 COVER, HOOD (INC. 18, 23)COVER, HOOD (INC. 18, 23)
-
182706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
195611-366 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
195611-367 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
205611-364 DECAL, COVER (CENTER)DECAL, COVER (CENTER)
-
215611-382 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
222606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
235611-319 DECAL, "AIRFORCE INDUCTION"DECAL, "AIRFORCE INDUCTION"
-
242606-801 O-RINGO-RING
-
253606-150 SCREEN, HOODSCREEN, HOOD
-
260623-902 SCREW, MACHINESCREW, MACHINE
-
270124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
280623-845 NUT, EXPANSIONNUT, EXPANSION
-
293606-062 WINDSHIELDWINDSHIELD
-
300616-032 O-RINGO-RING
-
311623-052 U, NUTU, NUT
-
322606-726 CABLE, HOODCABLE, HOOD
-
330623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
340623-544 PLUGPLUG
-
350623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
361623-208 WASHERWASHER
-
370617-445 FOAM, HOODFOAM, HOOD
