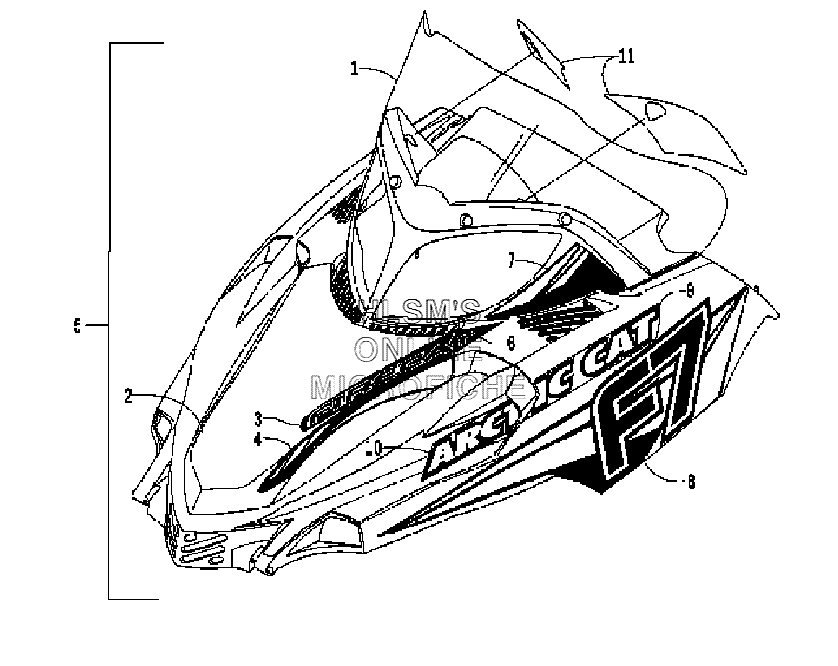

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1'' (Team Arctic Green) - 2004 года выпуска
-
№АртикулНазвание
-
13606-019 WINDSHIELDWINDSHIELD
-
21718-497 COVER, HOOD (INC. 3-4)COVER, HOOD (INC. 3-4)
-
35611-654 DECAL, COVER (UPPERRIGHT)DECAL, COVER (UPPERRIGHT)
-
35611-655 DECAL, COVER (UPPERLEFT)DECAL, COVER (UPPERLEFT)
-
45611-188 DECAL, COVER (LOWERRIGHT)DECAL, COVER (LOWERRIGHT)
-
45611-189 DECAL, COVER (LOWERLEFT)DECAL, COVER (LOWERLEFT)
-
51718-485 HOOD W/DECALS (INC. 6-11)HOOD W/DECALS (INC. 6-11)
-
65611-656 DECAL, HOOD (FRONTRIGHT)DECAL, HOOD (FRONTRIGHT)
-
65611-657 DECAL, HOOD (FRONTLEFT)DECAL, HOOD (FRONTLEFT)
-
75611-200 DECAL, HOOD (UPPERRIGHT)DECAL, HOOD (UPPERRIGHT)
-
75611-201 DECAL, HOOD (UPPERLEFT)DECAL, HOOD (UPPERLEFT)
-
85611-648 DECAL, HOOD (LOWERRIGHT)DECAL, HOOD (LOWERRIGHT)
-
85611-649 DECAL, HOOD (LOWERLEFT)DECAL, HOOD (LOWERLEFT)
-
95611-186 DECAL, HOOD, VENT (REARRIGHT)DECAL, HOOD, VENT (REARRIGHT)
-
95611-187 DECAL, HOOD, VENT (REARLEFT)DECAL, HOOD, VENT (REARLEFT)
-
105611-184 DECAL, HOOD, VENT (FRONTRIGHT)DECAL, HOOD, VENT (FRONTRIGHT)
-
105611-185 DECAL, HOOD, VENT (FRONTLEFT)DECAL, HOOD, VENT (FRONTLEFT)
-
115611-650 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
115611-651 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
