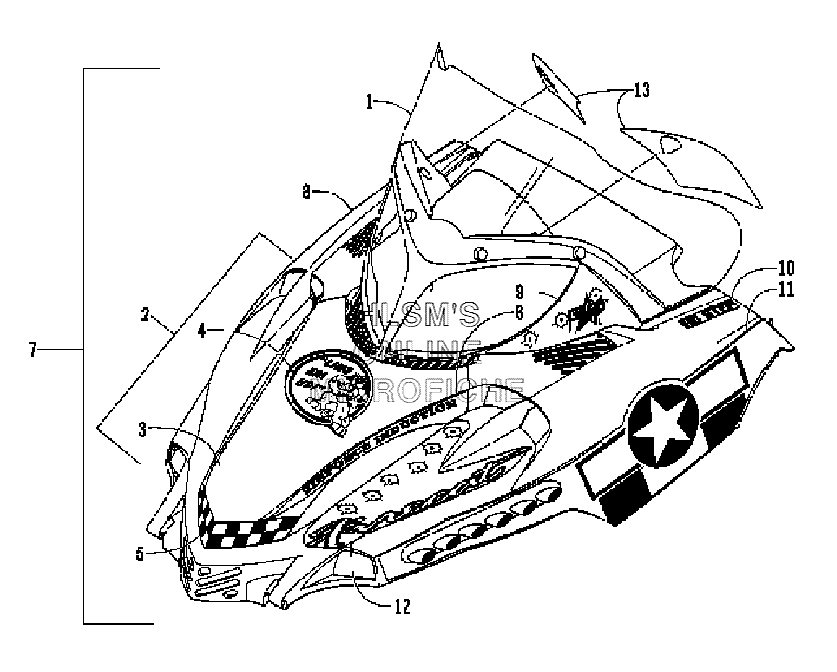

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1.375'' (Fighter Red) - 2004 года выпуска
-
№АртикулНазвание
-
12606-834 WINDSHIELDWINDSHIELD
-
21718-517 COVER, HOOD W/DECALS (INC. 3-6)COVER, HOOD W/DECALS (INC. 3-6)
-
32706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-757 DECAL, COVER, CRESTDECAL, COVER, CREST
-
55611-693 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
65611-758 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
65611-759 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
71718-513 HOOD W/DECALS (INC. 8-13)HOOD W/DECALS (INC. 8-13)
-
81718-270 HOOD W/O DECALSHOOD W/O DECALS
-
95611-750 DECAL, HOOD (UPPERRIGHT)DECAL, HOOD (UPPERRIGHT)
-
95611-751 DECAL, HOOD (UPPERLEFT)DECAL, HOOD (UPPERLEFT)
-
105611-756 DECAL, HOOD, VENTDECAL, HOOD, VENT
-
115611-740 DECAL, HOOD (LOWERRIGHT)DECAL, HOOD (LOWERRIGHT)
-
115611-741 DECAL, HOOD (LOWERLEFT)DECAL, HOOD (LOWERLEFT)
-
125611-742 DECAL, HOOD (FRONTRIGHT)DECAL, HOOD (FRONTRIGHT)
-
125611-743 DECAL, HOOD (FRONTLEFT)DECAL, HOOD (FRONTLEFT)
-
135611-744 DECAL, HOOD, CONSOLE (RIGHT)DECAL, HOOD, CONSOLE (RIGHT)
-
135611-745 DECAL, HOOD, CONSOLE (LEFT)DECAL, HOOD, CONSOLE (LEFT)
