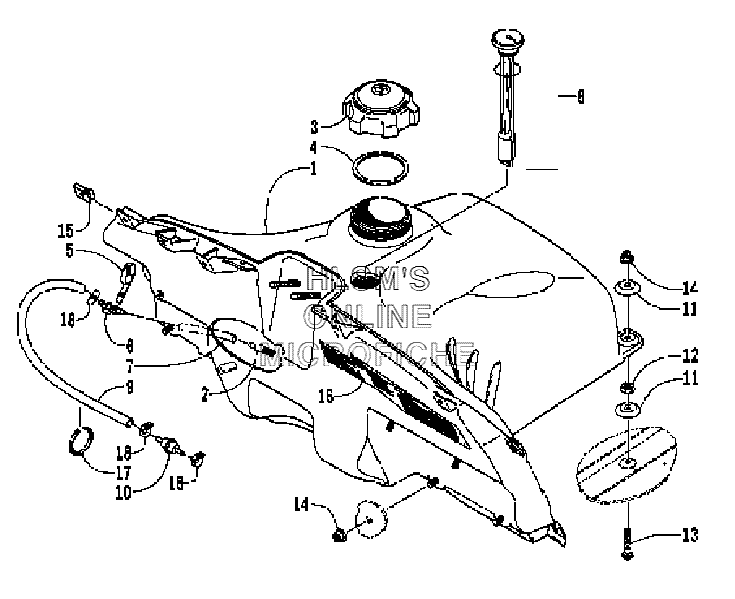

GAS TANK ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1.375'' (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10770-625 TANK, GAS (INC. 2, 8)TANK, GAS (INC. 2, 8)
-
20510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
31670-447 CAP, GAS TANK (INC. 4)CAP, GAS TANK (INC. 4)
-
41670-511 SEAL, TANK CAPSEAL, TANK CAP
-
50670-289 TAPE, TEFLONTAPE, TEFLON
-
61670-321 OUTLET, GAS TANKOUTLET, GAS TANK
-
70610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
70610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
81670-523 GAUGE, FUEL, ASSEMBLY W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSEMBLY W/GASKET (PRESS, FIT)
-
90610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
90610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
101670-166 FILTER, INNER, LINE FUELFILTER, INNER, LINE FUEL
-
110123-765 WASHER, CUPWASHER, CUP
-
128041-366 NUT, LOCKNUT, LOCK
-
138011-041 BOLT, CARRIAGEBOLT, CARRIAGE
-
148048-366 NUT, FLANGENUT, FLANGE
-
150623-427 NUT, SPEEDNUT, SPEED
-
165611-857 DECAL, JET CHARTDECAL, JET CHART
-
170123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
180124-045 CLAMP, HOSECLAMP, HOSE
