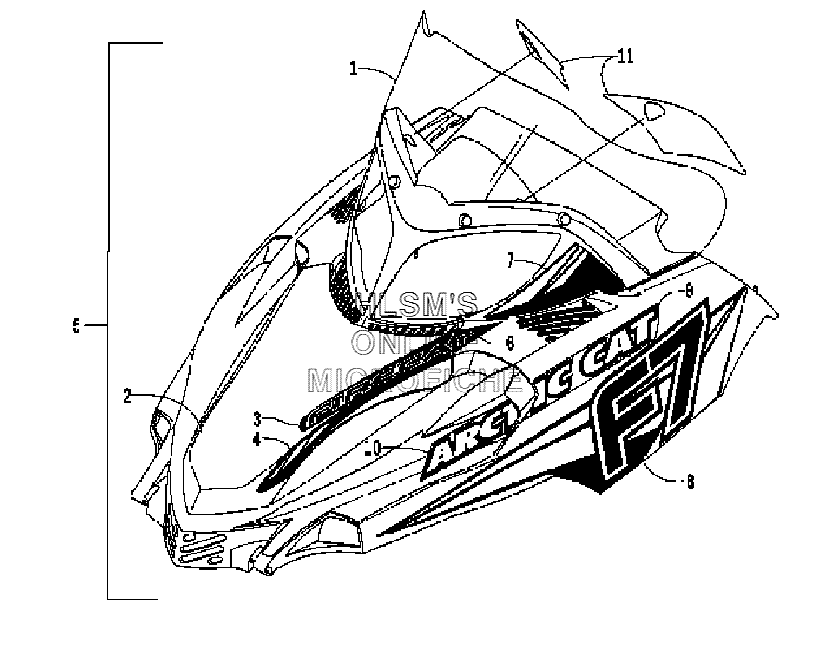

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1.375'' (Team Arctic Black) - 2004 года выпуска
-
№АртикулНазвание
-
13606-019 WINDSHIELDWINDSHIELD
-
21718-498 COVER, HOOD (INC. 3, 4)COVER, HOOD (INC. 3, 4)
-
35611-654 DECAL, COVER (UPPER/RIGHT)DECAL, COVER (UPPER/RIGHT)
-
35611-655 DECAL, COVER (UPPER/LEFT)DECAL, COVER (UPPER/LEFT)
-
45611-668 DECAL, COVER (LOWER/RIGHT)DECAL, COVER (LOWER/RIGHT)
-
45611-669 DECAL, COVER (LOWER/LEFT)DECAL, COVER (LOWER/LEFT)
-
51718-490 HOOD W/DECALS (INC. 6, 11)HOOD W/DECALS (INC. 6, 11)
-
65611-656 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
65611-657 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
75611-200 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
75611-201 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
85611-648 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
85611-649 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
95611-666 DECAL, HOOD, VENT (REAR/RIGHT)DECAL, HOOD, VENT (REAR/RIGHT)
-
95611-667 DECAL, HOOD, VENT (REAR/LEFT)DECAL, HOOD, VENT (REAR/LEFT)
-
105611-664 DECAL, HOOD, VENT (FRONT/RIGHT)DECAL, HOOD, VENT (FRONT/RIGHT)
-
105611-665 DECAL, HOOD, VENT (FRONT/LEFT)DECAL, HOOD, VENT (FRONT/LEFT)
-
115611-650 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
115611-651 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
