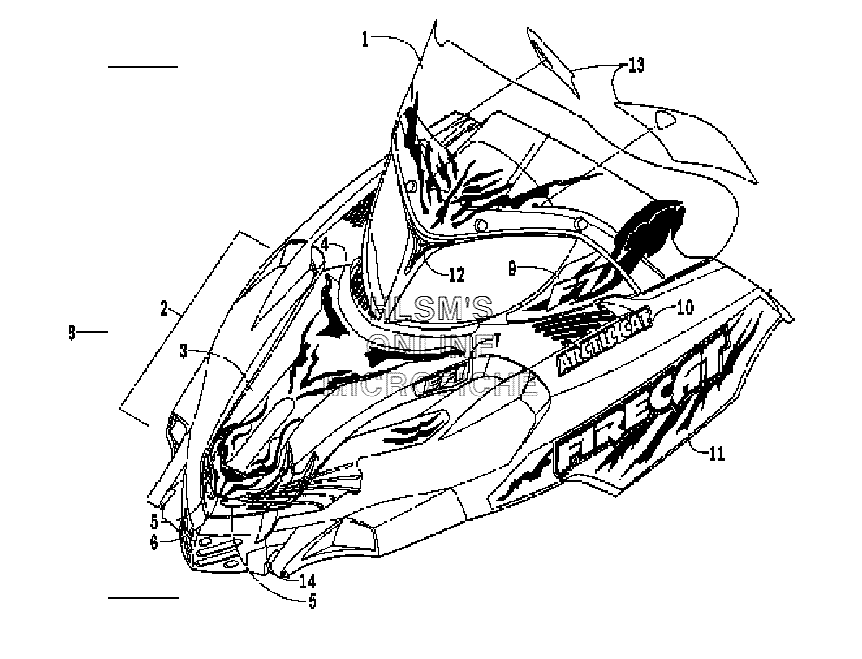

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1.375'' (Tiger Red) - 2004 года выпуска
-
№АртикулНазвание
-
13606-275 WINDSHIELDWINDSHIELD
-
21718-528 COVER, HOOD W/DECALS (INC. 3, 6)COVER, HOOD W/DECALS (INC. 3, 6)
-
32706-042 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-828 DECAL, COVER, CRESTDECAL, COVER, CREST
-
55611-830 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
55611-831 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
65611-829 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
81718-505 HOOD W/DECALS (INC. 9, 14)HOOD W/DECALS (INC. 9, 14)
-
95611-816 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
95611-817 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
105611-822 DECAL, HOOD, VENTDECAL, HOOD, VENT
-
115611-826 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
115611-827 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
125611-823 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
135611-818 DECAL, HOOD, CONSOLE (RIGHT)DECAL, HOOD, CONSOLE (RIGHT)
-
135611-819 DECAL, HOOD, CONSOLE (LEFT)DECAL, HOOD, CONSOLE (LEFT)
-
145611-824 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
145611-825 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
