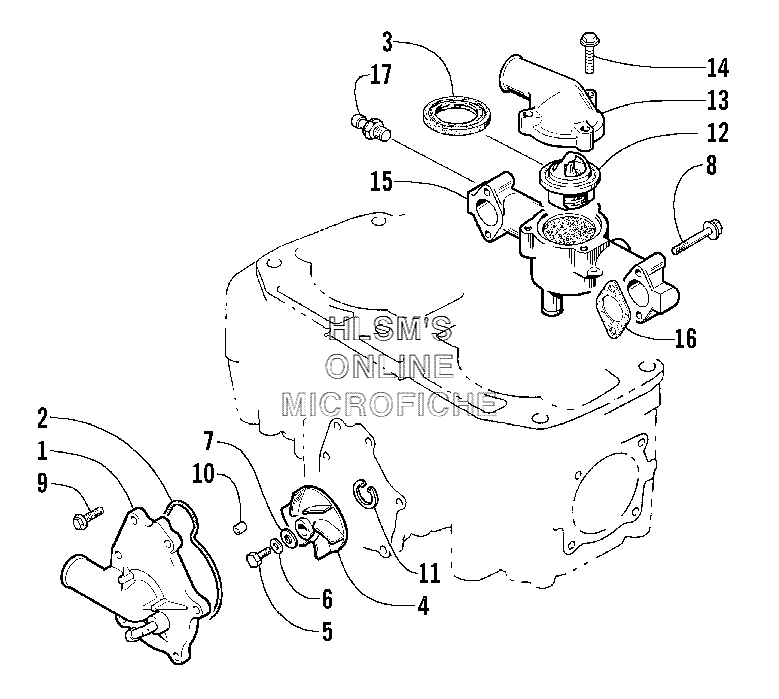

WATER PUMP/WATER MANIFOLD ASSY. для Arctic Cat King Cat 900 (Orange) - 2004 года выпуска
-
№АртикулНазвание
-
13006-417 CASE, WATER PUMPCASE, WATER PUMP
-
23005-886 O-RING, CASEO-RING, CASE
-
33003-495 GASKET, THERMOSTATGASKET, THERMOSTAT
-
43005-697 IMPELLERIMPELLER
-
53003-426 BOLTBOLT
-
63003-431 WASHERWASHER
-
73003-432 WASHERWASHER
-
83004-369 BOLTBOLT
-
93004-341 SCREW, CASESCREW, CASE
-
103005-899 PIN, DOWELPIN, DOWEL
-
113004-009 CIRCLIPCIRCLIP
-
123004-964 THERMOSTATTHERMOSTAT
-
133003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
143004-376 BOLTBOLT
-
153006-698 MANIFOLD, THERMOSTATMANIFOLD, THERMOSTAT
-
163004-260 GASKET, THERMOSTAT MANIFOLDGASKET, THERMOSTAT MANIFOLD
-
170630-140 SWITCH, TEMPERATURESWITCH, TEMPERATURE
