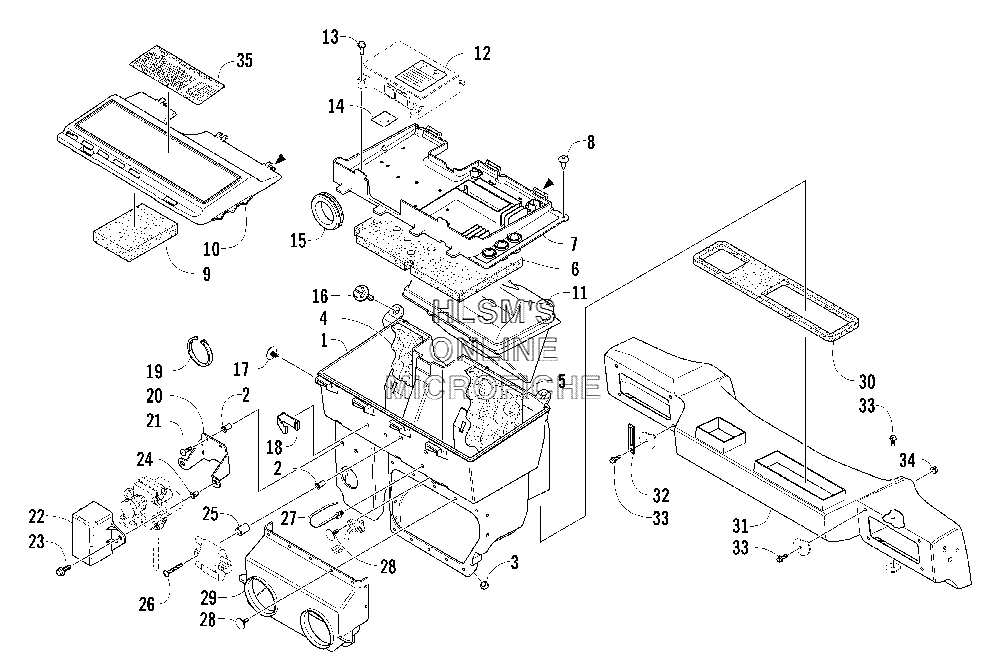

AIR SILENCER ASSY. для Arctic Cat Mountain Cat 600 EFI (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10770-662 SILENCER, AIR, ASSY. (INC. 2)SILENCER, AIR, ASSY. (INC. 2)
-
21623-127 INSERTINSERT
-
31606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
40617-252 FOAM, AIR SILENCER, BACK MAGNETOFOAM, AIR SILENCER, BACK MAGNETO
-
50617-253 FOAM, AIR SILENCER, BACK PTOFOAM, AIR SILENCER, BACK PTO
-
60617-393 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
71670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
80623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
101670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
110670-879 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
123611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
130623-785 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
142606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
151670-145 GROMMETGROMMET
-
160623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
170623-544 PLUG, HOLEPLUG, HOLE
-
180623-792 CLIP, PUSH, MOUNTCLIP, PUSH, MOUNT
-
190123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
200770-618 PLATE, MOUNTINGPLATE, MOUNTING
-
218017-400 SCREW, MACHINESCREW, MACHINE
-
222606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
238020-044 SCREW, CAPSCREW, CAP
-
240623-582 INSERTINSERT
-
251623-045 SPACERSPACER
-
268017-406 SCREW, MACHINESCREW, MACHINE
-
270623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
280623-165 CLIP, RETAININGCLIP, RETAINING
-
291670-373 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
300617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
311670-438 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
323002-964 CLAMP, WIRECLAMP, WIRE
-
338002-039 SCREW, CAPSCREW, CAP
-
348048-366 NUT, LOCKNUT, LOCK
-
355611-305 DECAL, CLUTCHINGDECAL, CLUTCHING
