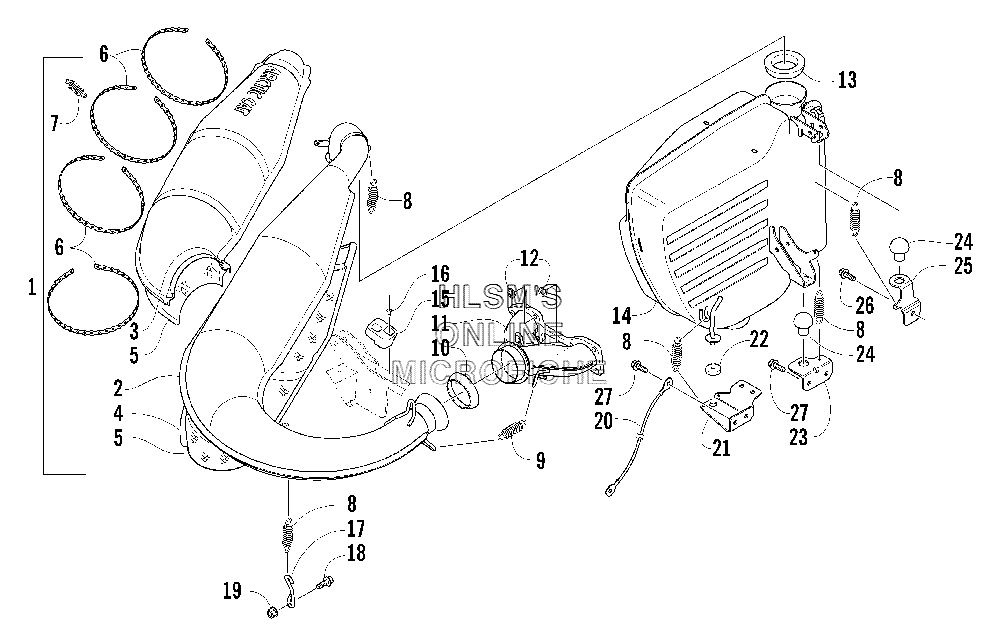

EXHAUST ASSY. для Arctic Cat Mountain Cat 800 EFI (Green 151) - 2004 года выпуска
-
№АртикулНазвание
-
11712-070 EXPANSION CHAMBER ASSY. (INC. 2, 7)EXPANSION CHAMBER ASSY. (INC. 2, 7)
-
21712-009 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
31612-254 COVER (UPPER)COVER (UPPER)
-
41612-725 COVER (LOWER)COVER (LOWER)
-
51612-256 INSULATIONINSULATION
-
60624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
60624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
71612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
80612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
90612-820 SPRING, EXTENSIONSPRING, EXTENSION
-
101612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
111712-064 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
128053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
130612-993 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
140712-997 RESONATORRESONATOR
-
151612-724 MOUNT, EXPANSION CHAMBER, RUBBERMOUNT, EXPANSION CHAMBER, RUBBER
-
168061-652 RIVETRIVET
-
170712-913 BRACKET, WIREFORMBRACKET, WIREFORM
-
188020-040 SCREW, CAPSCREW, CAP
-
198048-366 NUT, LOCKNUT, LOCK
-
200686-126 WIRE, GROUNDWIRE, GROUND
-
210712-705 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
221612-319 BUSHING, STEM, RESONATOR MOUNTINGBUSHING, STEM, RESONATOR MOUNTING
-
230712-992 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
240612-111 BUMPER, RUBBERBUMPER, RUBBER
-
250712-991 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
268020-132 SCREW, CAPSCREW, CAP
-
278020-039 SCREW, CAPSCREW, CAP
