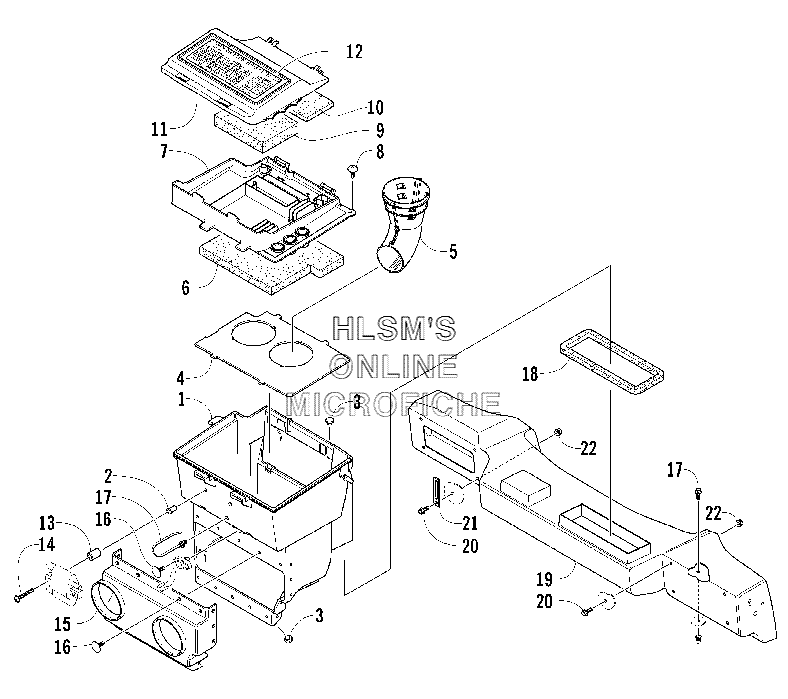

AIR SILENCER ASSY. для Arctic Cat Mountain Cat 800 EFI (Red 159) - 2004 года выпуска
-
№АртикулНазвание
-
10770-663 SILENCER, AIR, ASSY. (INC. 2)SILENCER, AIR, ASSY. (INC. 2)
-
21623-127 INSERTINSERT
-
31606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
41670-461 BAFFLE, AIR SILENCERBAFFLE, AIR SILENCER
-
50670-617 FUNNEL, AIR SILENCERFUNNEL, AIR SILENCER
-
60617-430 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
71670-539 COVER, AIR SILENCERCOVER, AIR SILENCER
-
80623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90617-439 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
100617-440 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
111670-425 COVER, TOOL TRAYCOVER, TOOL TRAY
-
125611-306 DECAL, CLUTCHINGDECAL, CLUTCHING
-
131623-045 SPACERSPACER
-
148017-406 SCREW, MACHINESCREW, MACHINE
-
151670-256 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
160623-165 CLIP, RETAININGCLIP, RETAINING
-
170623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
180617-436 SEAL, AIR SILENCER PLENUMSEAL, AIR SILENCER PLENUM
-
191670-480 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
208020-039 SCREW, CAPSCREW, CAP
-
213002-964 CLAMP, WIRECLAMP, WIRE
-
228048-366 NUT, LOCKNUT, LOCK
