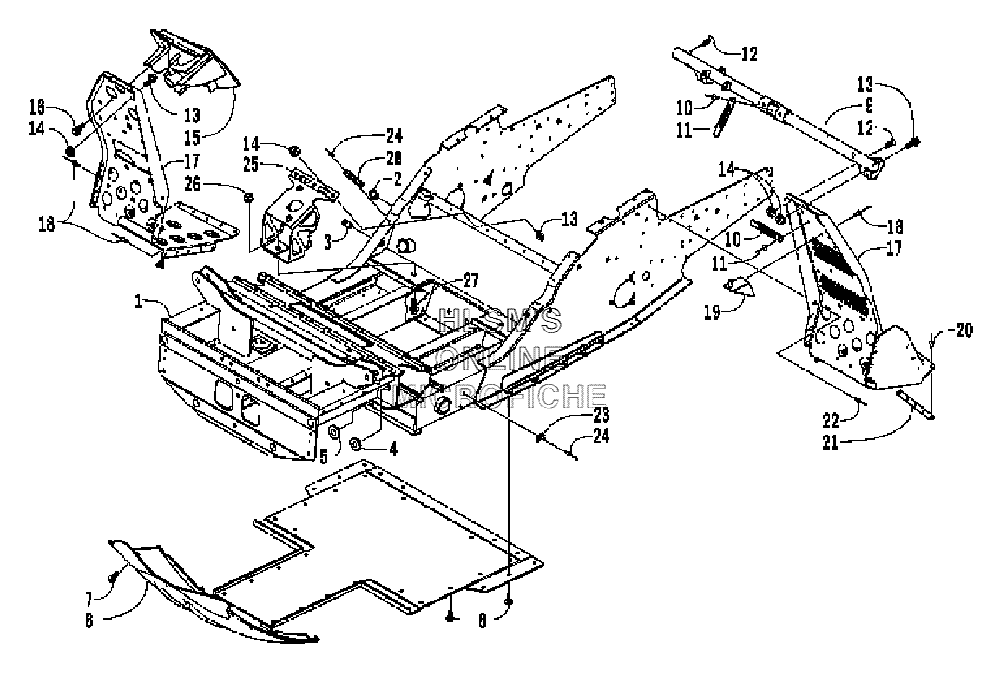

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat Mountain Cat 900 EFI (Green 159) - 2004 года выпуска
-
№АртикулНазвание
-
10707-814 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
50607-420 INSERT, A, ARM MOUNTINSERT, A, ARM MOUNT
-
61606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
70623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90705-940 SUPPORT, STEERINGSUPPORT, STEERING
-
103606-173 STRAP, HOLD, DOWN, AIR SILENCERSTRAP, HOLD, DOWN, AIR SILENCER
-
118061-628 RIVETRIVET
-
128019-614 SCREW, MACHINESCREW, MACHINE
-
138020-039 SCREW, CAPSCREW, CAP
-
148048-366 NUT, LOCKNUT, LOCK
-
151606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
160623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
172606-800 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
172606-733 FOOTREST (LEFT)FOOTREST (LEFT)
-
180623-166 RIVETRIVET
-
190705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
200623-282 RIVETRIVET
-
212706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
220623-341 RIVETRIVET
-
230623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
248060-506 RIVETRIVET
-
250708-398 BRACKET, MOUNTING, ENGINEBRACKET, MOUNTING, ENGINE
-
268048-426 NUT, LOCKNUT, LOCK
-
278020-130 SCREW, CAPSCREW, CAP
-
283002-964 CLAMP, WIRECLAMP, WIRE
