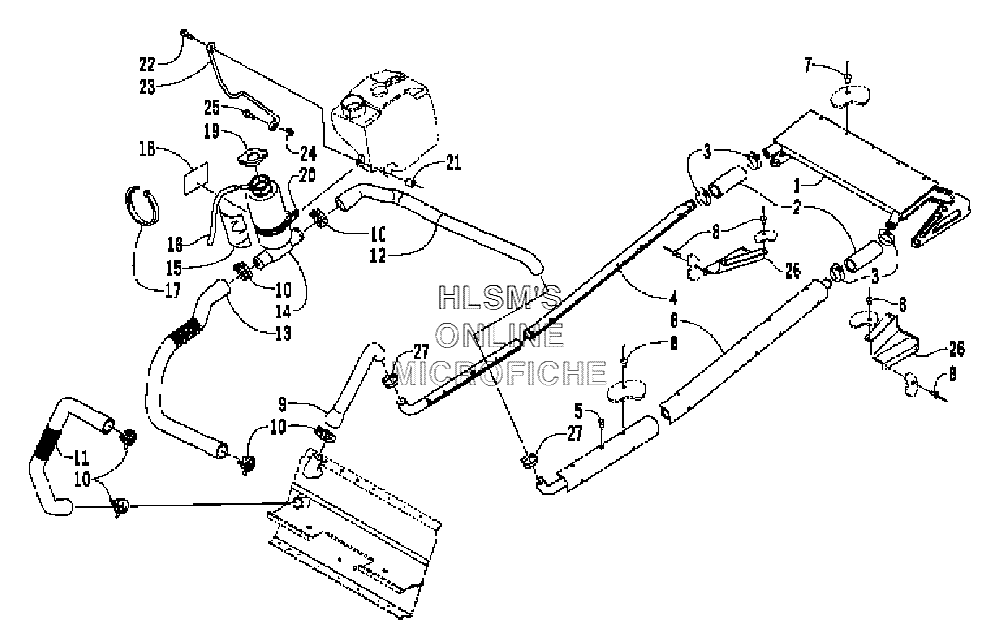

COOLING ASSY. для Arctic Cat Mountain Cat 900 (Green 159) - 2004 года выпуска
-
№АртикулНазвание
-
12706-266 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
20610-506 HOSE, COOLANT, HEAT EXCHANGERHOSE, COOLANT, HEAT EXCHANGER
-
31623-195 CLAMP, HOSECLAMP, HOSE
-
42706-210 HEAT EXCHANGER (RIGHT) (INC. ONE NO. 5)HEAT EXCHANGER (RIGHT) (INC. ONE NO. 5)
-
50623-627 INSERTINSERT
-
62706-211 HEAT EXCHANGER (LEFT) (INC. ONE NO. 5)HEAT EXCHANGER (LEFT) (INC. ONE NO. 5)
-
78060-686 RIVETRIVET
-
88060-484 RIVETRIVET
-
90610-504 HOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGER
-
100623-736 CLAMP, HOSECLAMP, HOSE
-
110610-475 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
120610-505 HOSE, COOLANT TANK/LEFT HEAT EXCHANGERHOSE, COOLANT TANK/LEFT HEAT EXCHANGER
-
130610-474 HOSE, COOLANT TANK/ENGINEHOSE, COOLANT TANK/ENGINE
-
141606-396 TANK, COOLANTTANK, COOLANT
-
150706-548 TAPE, FOILTAPE, FOIL
-
160610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
160610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
170123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
182611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
190606-268 CAP, FILLER NECKCAP, FILLER NECK
-
200623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
211623-045 SPACERSPACER
-
228020-046 SCREW, CAPSCREW, CAP
-
230707-716 GUIDE, ROPEGUIDE, ROPE
-
248048-366 NUT, LOCKNUT, LOCK
-
258020-044 SCREW, CAPSCREW, CAP
-
263606-380 PROTECTOR, HOSE (RIGHT)PROTECTOR, HOSE (RIGHT)
-
263606-381 PROTECTOR, HOSE (LEFT)PROTECTOR, HOSE (LEFT)
-
271623-203 CLAMP, HOSECLAMP, HOSE
