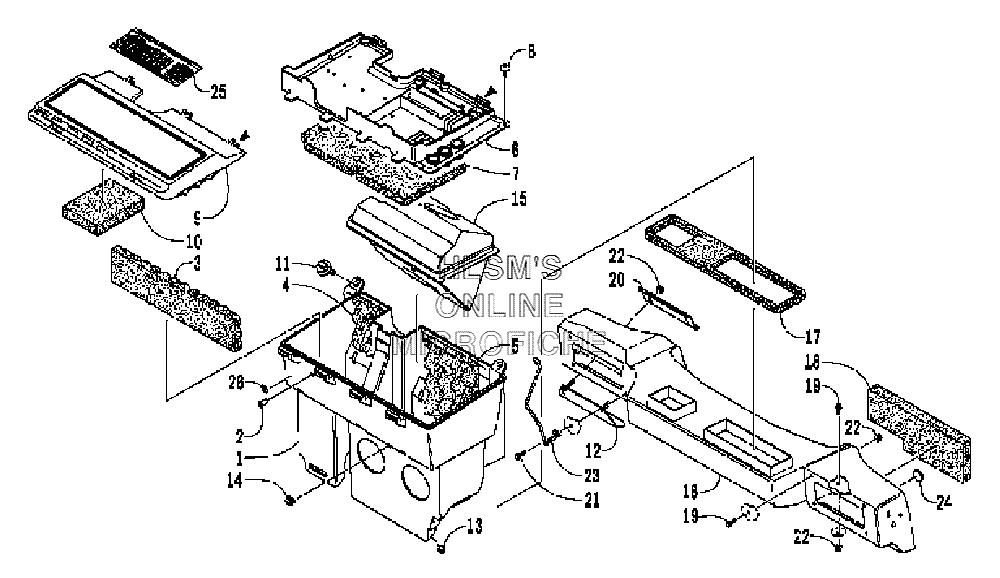

AIR SILENCER ASSY. для Arctic Cat Pantera 550 International - 2004 года выпуска
-
№АртикулНазвание
-
10770-439 SILENCER, AIR, ASSY. (INC. 2)SILENCER, AIR, ASSY. (INC. 2)
-
20623-627 INSERT, THREADEDINSERT, THREADED
-
30617-254 FOAM, AIR SILENCER (FRONT)FOAM, AIR SILENCER (FRONT)
-
40617-252 FOAM, AIR SILENCER, BACK MAGNETOFOAM, AIR SILENCER, BACK MAGNETO
-
50617-253 FOAM, AIR SILENCER, BACK PTOFOAM, AIR SILENCER, BACK PTO
-
61670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
70617-393 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
80623-727 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
100617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
110623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
122606-095 PLATE, BACKINGPLATE, BACKING
-
131606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
140623-403 CLAMP, PUSH, MOUNTCLAMP, PUSH, MOUNT
-
151670-062 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
161670-327 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
170617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
180617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
198020-039 SCREW, CAPSCREW, CAP
-
201706-899 PLATE, ADJUSTABLEPLATE, ADJUSTABLE
-
218020-040 SCREW, CAPSCREW, CAP
-
228048-366 NUT, LOCKNUT, LOCK
-
230707-705 BRACKET, GUIDE, HARNESS/ROPEBRACKET, GUIDE, HARNESS/ROPE
-
240623-078 DISC, VELCRODISC, VELCRO
-
255611-547 DECAL, JET CHARTDECAL, JET CHART
-
264611-029 DECAL, FUEL SHUT, OFF VALVEDECAL, FUEL SHUT, OFF VALVE
