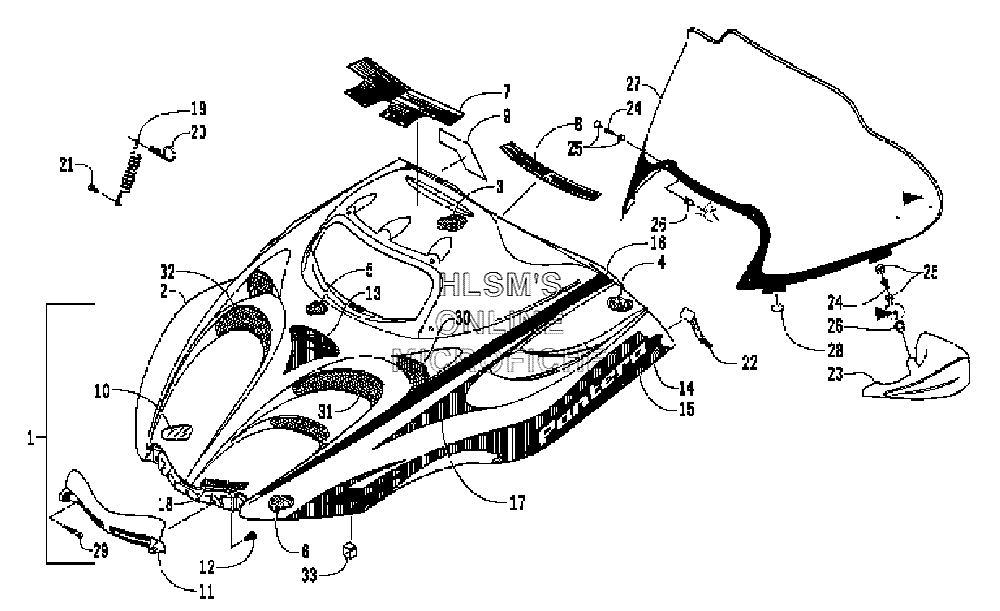

HOOD AND WINDSHIELD ASSY. для Arctic Cat Pantera 600 EFI (Black) - 2004 года выпуска
-
№АртикулНазвание
-
11718-463 HOOD W/DECALS (INC. 2, 18)HOOD W/DECALS (INC. 2, 18)
-
21718-462 HOOD W/O DECALS (INC. 3, 12)HOOD W/O DECALS (INC. 3, 12)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-146 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40717-147 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-580 DECAL REVERSEDECAL REVERSE
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
135611-229 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
145611-222 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
145611-223 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
155611-870 DECAL, HOOD, "PANTERA" (RIGHT)DECAL, HOOD, "PANTERA" (RIGHT)
-
155611-871 DECAL, HOOD, "PANTERA" (LEFT)DECAL, HOOD, "PANTERA" (LEFT)
-
165611-226 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
165611-227 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
175611-224 DECAL, HOOD, VENT (RIGHT)DECAL, HOOD, VENT (RIGHT)
-
175611-225 DECAL, HOOD, VENT (LEFT)DECAL, HOOD, VENT (LEFT)
-
185611-231 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
192606-247 CABLE, HOODCABLE, HOOD
-
200623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
210623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
221606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
232639-477 MIRROR, KIT (INC. SIX NO. 24, 26)MIRROR, KIT (INC. SIX NO. 24, 26)
-
240623-902 SCREW, MACHINESCREW, MACHINE
-
250124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
260623-845 NUT, EXPANSIONNUT, EXPANSION
-
272606-366 WINDSHIELDWINDSHIELD
-
280616-032 O-RINGO-RING
-
291623-016 SCREW, MACHINESCREW, MACHINE
-
302706-409 SCREEN, VENT, HOOD (UPPER/LEFT)SCREEN, VENT, HOOD (UPPER/LEFT)
-
312706-407 SCREEN, VENT, HOOD (LEFT)SCREEN, VENT, HOOD (LEFT)
-
322706-408 SCREEN, VENT, HOOD (RIGHT)SCREEN, VENT, HOOD (RIGHT)
-
330123-394 CLIP, RETAININGCLIP, RETAINING
