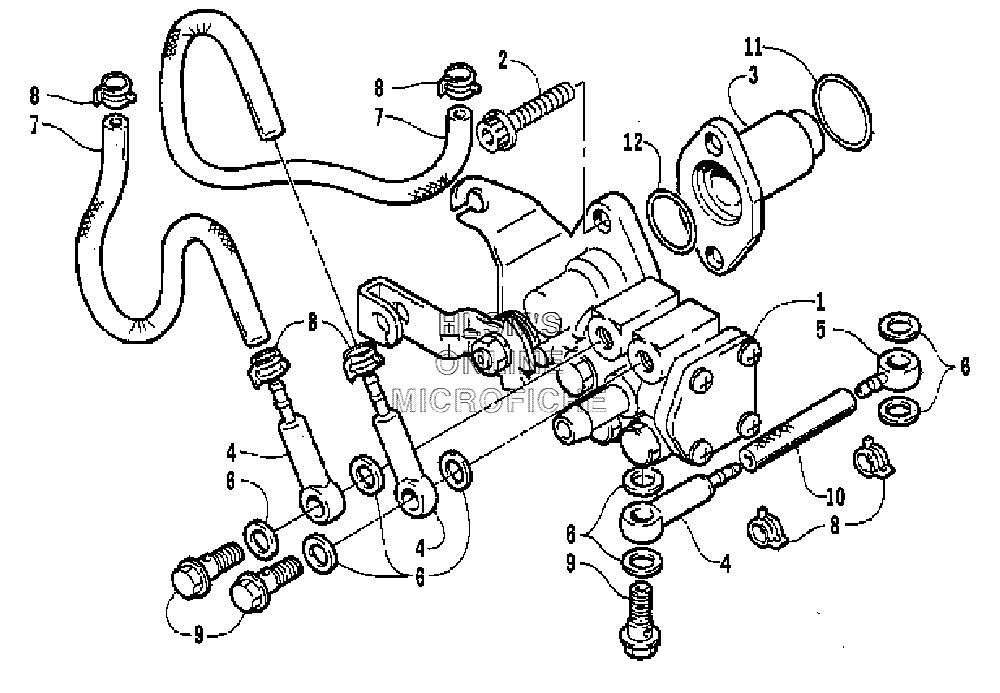

OIL PUMP для Arctic Cat Pantera 800 EFI (Gold) - 2004 года выпуска
-
№АртикулНазвание
-
13006-063 OIL PUMP ASSY.OIL PUMP ASSY.
-
23004-893 SCREW, OIL PUMPSCREW, OIL PUMP
-
33005-884 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
43003-217 VALVE, CHECKVALVE, CHECK
-
53003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
63402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
73008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
83008-037 CLAMP, HOSECLAMP, HOSE
-
93004-346 BOLT, UNIONBOLT, UNION
-
103005-357 HOSE, OIL PUMPHOSE, OIL PUMP
-
113005-126 O-RINGO-RING
-
123008-030 O-RINGO-RING
Все узлы модели:
- A-ARM ASSY.
- AIR SILENCER ASSY.
- BACKREST AND TAILLIGHT ASSY.
- BATTERY- SOLENOID- AND CABLES
- BELLY PAN AND FRONT BUMPER ASSY.
- BELT GUARD ASSY.
- CONSOLE AND SWITCH ASSY.
- COOLING ASSY.
- CRANKCASE ASSY.
- CYLINDER AND HEAD ASSY.
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSY.
- DRIVE/REVERSE DROPCASE ASSY.
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSY.
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FLEX-DRIVE STARTER MOTOR ASSY.
- FRONT FRAME AND FOOTREST ASSY.
- FUEL PUMP ASSY.
- GAS TANK AND SEAT ASSY.
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSY.
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- MAGNETO
- • OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION REAR ARM ASSY.
- RECOIL STARTER
- REED VALVE ASSY.
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSY.
- SERVOMOTOR ASSY.
- SHOCK ABSORBER AND SWAY BAR ASSY.
- SKI AND SPINDLE ASSY.
- SLIDE RAIL AND TRACK ASSY.
- STEERING POST ASSY.
- THROTTLE BODY ASSY.
- TIE ROD ASSY.
- TUNNEL AND REAR BUMPER
- WATER PUMP/WATER MANIFOLD ASSY.
