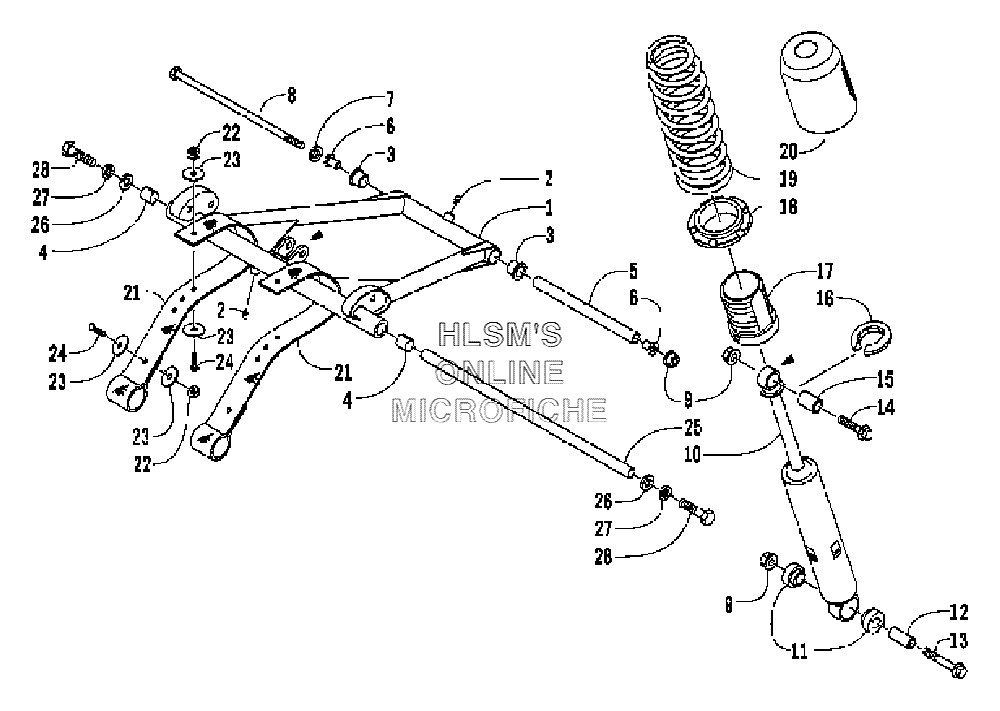

REAR SUSPENSION FRONT ARM ASSY. для Arctic Cat Panther 370 International - 2004 года выпуска
-
№АртикулНазвание
-
10704-843 ARM SUSPENSION (FRONT) (INC. 2, 4)ARM SUSPENSION (FRONT) (INC. 2, 4)
-
20623-922 FITTING, GREASEFITTING, GREASE
-
30104-386 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
40603-083 BEARINGBEARING
-
50604-194 TUBE, AXLETUBE, AXLE
-
60603-061 AXLE, SERRATEDAXLE, SERRATED
-
70623-664 WASHERWASHER
-
81623-037 SCREW, CAPSCREW, CAP
-
98048-486 NUT, LOCKNUT, LOCK
-
101604-369 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
111604-384 BUSHING, SHOCKBUSHING, SHOCK
-
121604-329 AXLE, PIVOT, SHOCKAXLE, PIVOT, SHOCK
-
138020-228 SCREW, CAPSCREW, CAP
-
148020-226 SCREW, CAPSCREW, CAP
-
150603-030 AXLE, SERRATEDAXLE, SERRATED
-
161603-889 RETAINER, SPRINGRETAINER, SPRING
-
170603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
180603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
190603-860 SPRING, COMPRESSIONSPRING, COMPRESSION
-
200604-590 COVER, SHOCKCOVER, SHOCK
-
212604-305 STRAP, LIMITERSTRAP, LIMITER
-
228048-366 NUT, LOCKNUT, LOCK
-
230623-184 WASHERWASHER
-
248002-042 SCREW, CAPSCREW, CAP
-
250114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
260623-044 WASHERWASHER
-
278051-277 WASHER, LOCKWASHER, LOCK
-
288002-224 SCREW, CAPSCREW, CAP
