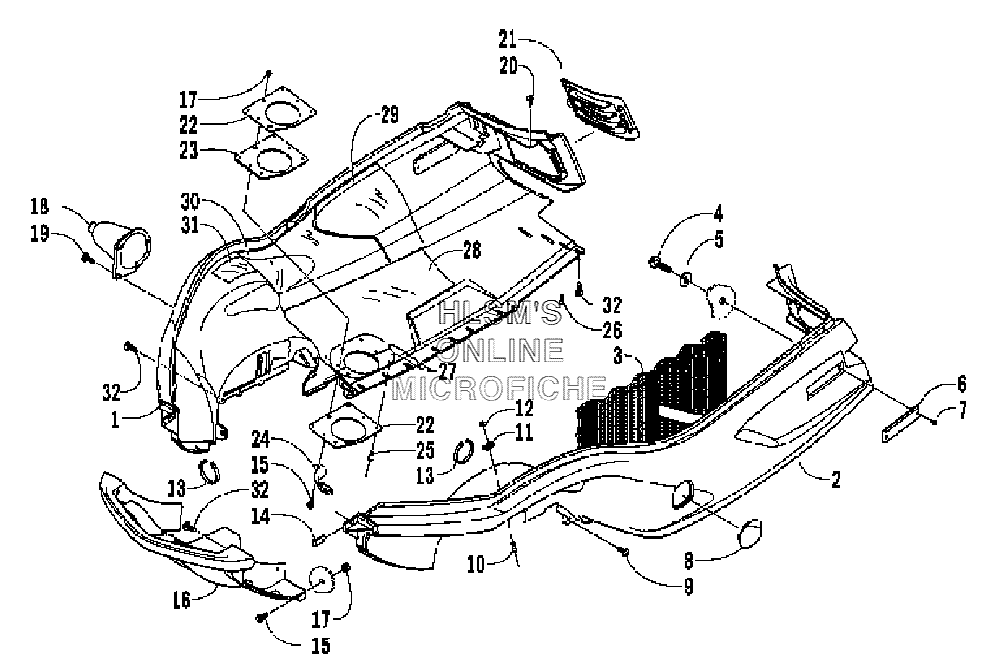

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat Panther 570 - 2004 года выпуска
-
№АртикулНазвание
-
11706-846 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-141 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
40623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
60606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
81606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
90623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
108060-506 RIVETRIVET
-
110623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
120123-149 WASHERWASHER
-
130123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
140623-427 NUT, UNUT, U
-
158020-040 SCREW, CAPSCREW, CAP
-
161606-949 BUMPER (FRONT)BUMPER (FRONT)
-
178048-366 NUT, LOCKNUT, LOCK
-
180605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
180605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
190623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
211606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
211606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
220712-939 SHIELD, EXHAUSTSHIELD, EXHAUST
-
231612-514 SEAL, EXHAUSTSEAL, EXHAUST
-
240712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
258060-508 RIVETRIVET
-
268061-508 RIVETRIVET
-
270619-206 TAPE, FOILTAPE, FOIL
-
282606-374 FOIL, PROTECTIVE (LOWER/REAR)FOIL, PROTECTIVE (LOWER/REAR)
-
292606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
-
302606-376 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
312606-387 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
321623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
