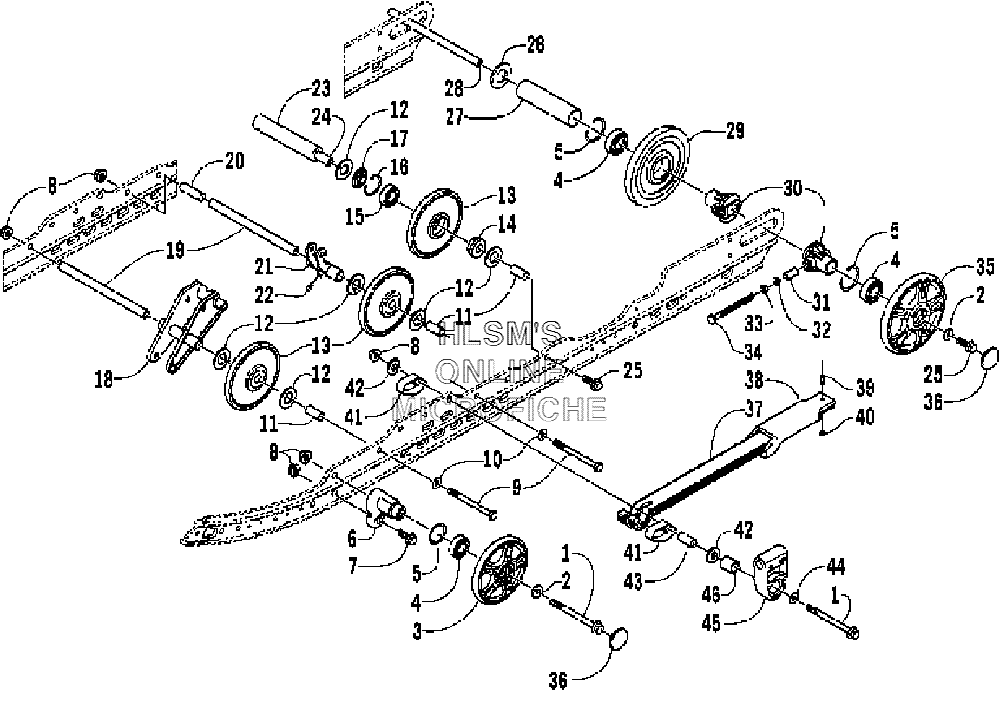

IDLER WHEEL ASSY. для Arctic Cat Panther 571 International - 2004 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20623-664 WASHERWASHER
-
32604-273 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
41604-847 BEARINGBEARING
-
50623-946 RING, RETAININGRING, RETAINING
-
62604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
78020-224 SCREW, CAPSCREW, CAP
-
88048-486 NUT, LOCKNUT, LOCK
-
90623-907 SCREW, CAPSCREW, CAP
-
100623-044 WASHERWASHER
-
111604-213 SPACERSPACER
-
120623-675 WASHERWASHER
-
131604-684 WHEEL, IDLER (INC. 14, 17)WHEEL, IDLER (INC. 14, 17)
-
141604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
150107-598 BEARINGBEARING
-
160123-798 RING, RETAININGRING, RETAINING
-
171604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
180704-396 BRACKET, MOUNTING FRONT SHOCKBRACKET, MOUNTING FRONT SHOCK
-
191604-209 AXLE, STEELAXLE, STEEL
-
200603-105 SPACERSPACER
-
210704-589 PIVOT, SHOCK (INC. 22)PIVOT, SHOCK (INC. 22)
-
220623-922 FITTING, GREASEFITTING, GREASE
-
231604-214 SPACERSPACER
-
240604-930 AXLEAXLE
-
258020-223 SCREW, CAPSCREW, CAP
-
260623-921 WASHERWASHER
-
271604-940 SPACERSPACER
-
282604-283 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
291604-838 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
302604-260 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
310704-854 SPACERSPACER
-
328051-277 WASHER, LOCKWASHER, LOCK
-
338042-486 NUTNUT
-
340623-123 SCREW, CAPSCREW, CAP
-
352604-550 WHEEL, IDLER (INC. 4, 5)WHEEL, IDLER (INC. 4, 5)
-
361604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
371604-457 SPO-RINGVERLOAD ASSY. (INC. 38, 41)SPO-RINGVERLOAD ASSY. (INC. 38, 41)
-
381604-378 BLOCK, WEARBLOCK, WEAR
-
398060-411 RIVETRIVET
-
400123-149 WASHERWASHER
-
411604-412 CLIP, RETAININGCLIP, RETAINING
-
420623-746 WASHERWASHER
-
430604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
448050-282 WASHERWASHER
-
452604-516 SLIDE, SPRINGSLIDE, SPRING
-
461604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
