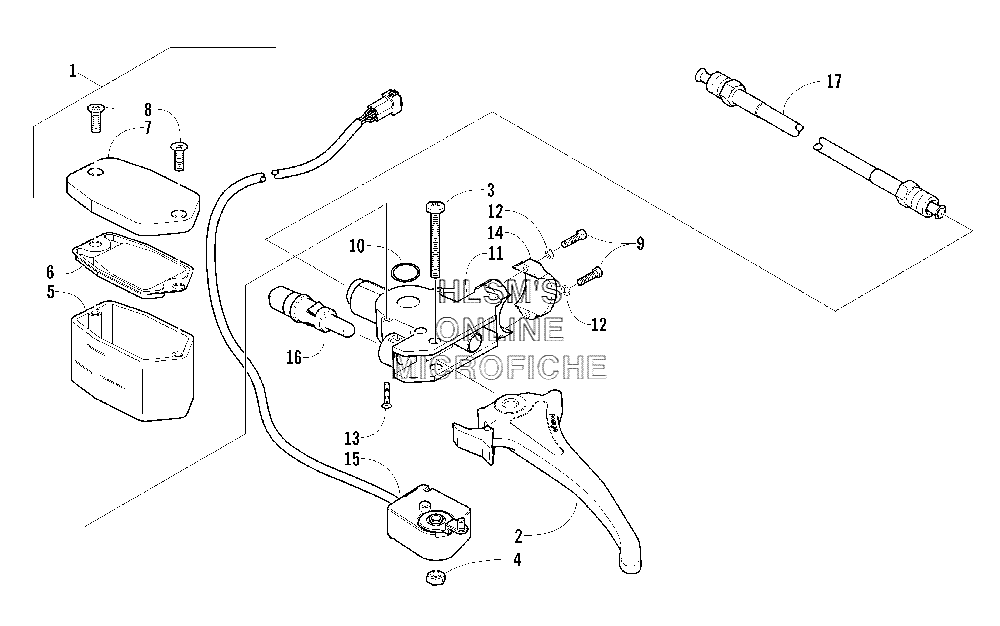

HYDRAULIC BRAKE CONTROL ASSY. для Arctic Cat Sabercat 600 EFI (Green) - 2004 года выпуска
-
№АртикулНазвание
-
11602-364 BRAKE ASSY. (INC. 2, 14)BRAKE ASSY. (INC. 2, 14)
-
21602-363 LEVER, BRAKELEVER, BRAKE
-
31623-027 SCREW, LEVER MOUNTINGSCREW, LEVER MOUNTING
-
40623-056 NUT, LOCKNUT, LOCK
-
50602-740 RESERVOIRRESERVOIR
-
60602-741 GASKET, COVERGASKET, COVER
-
70602-742 COVER, RESERVOIRCOVER, RESERVOIR
-
80623-506 SCREW, COVERSCREW, COVER
-
90623-613 SCREW, MACHINESCREW, MACHINE
-
100602-587 O-RINGO-RING
-
128052-212 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
130623-432 SCREW, MASTER CYLINDER MOUNTINGSCREW, MASTER CYLINDER MOUNTING
-
140602-907 CLAMP, MASTER CYLINDERCLAMP, MASTER CYLINDER
-
140638-315 FLUID, BRAKE, HIGH TEMPERATUREFLUID, BRAKE, HIGH TEMPERATURE
-
150609-629 SWITCH, DIMMER/BRAKELIGHTSWITCH, DIMMER/BRAKELIGHT
-
160609-637 SPRING ASSY., DIMMER/BRAKELIGHTSPRING ASSY., DIMMER/BRAKELIGHT
-
171602-488 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
