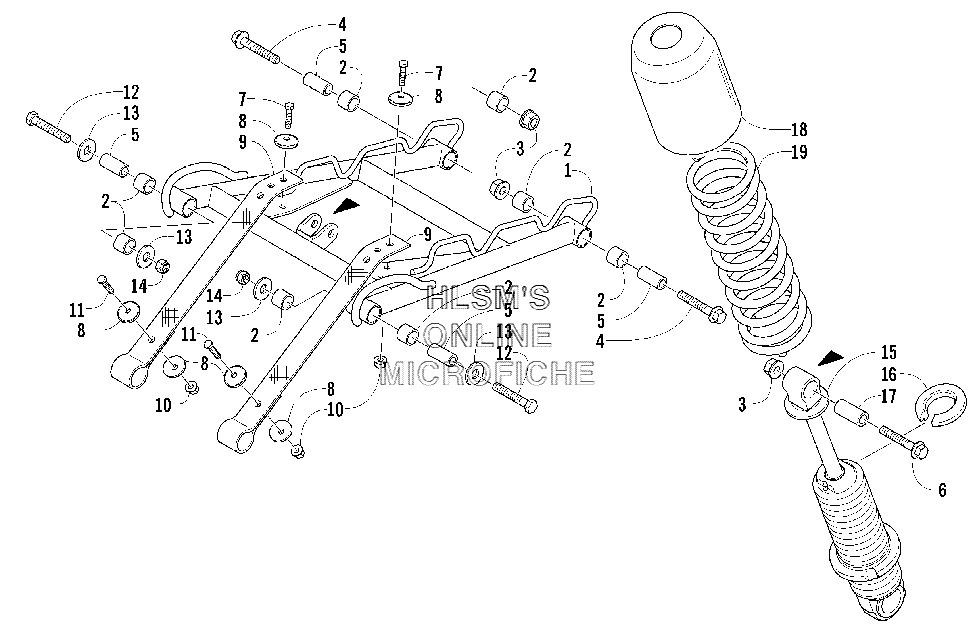

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat Sabercat 600 EFI (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11704-092 ARM SUSPENSION (FRONT) (INC. 2)ARM SUSPENSION (FRONT) (INC. 2)
-
20604-889 BUSHINGBUSHING
-
38048-486 NUT, LOCKNUT, LOCK
-
48020-228 SCREW, CAPSCREW, CAP
-
50104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
68020-227 SCREW, CAPSCREW, CAP
-
78002-040 SCREW, CAPSCREW, CAP
-
80623-875 WASHERWASHER
-
92604-609 STRAP, LIMITERSTRAP, LIMITER
-
108048-366 NUT, LOCKNUT, LOCK
-
118002-043 SCREW, CAPSCREW, CAP
-
128002-229 SCREW, CAPSCREW, CAP
-
130623-044 WASHERWASHER
-
148040-486 NUT, LOCKNUT, LOCK
-
151704-142 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
161603-890 RETAINER, SPRINGRETAINER, SPRING
-
171603-531 AXLE, SHOCKAXLE, SHOCK
-
180604-790 COVER, SHOCKCOVER, SHOCK
-
190704-523 SPRING, COMPRESSIONSPRING, COMPRESSION
