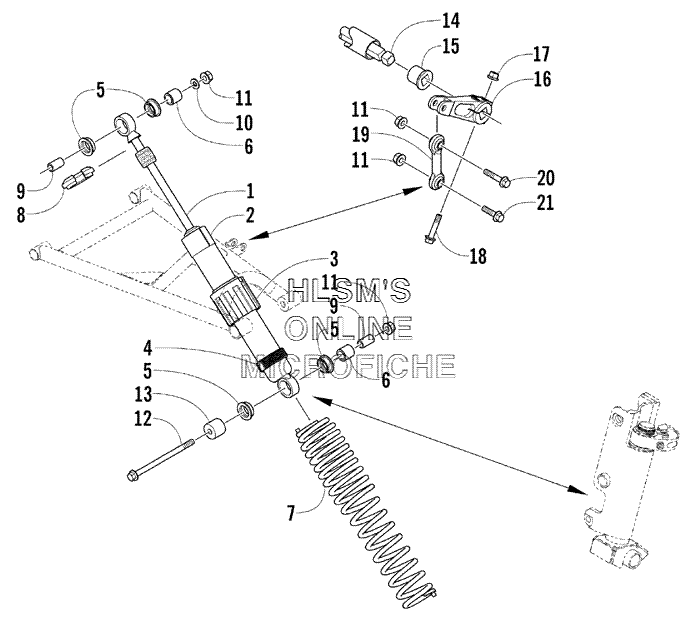

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat Sabercat 600 (Green) - 2004 года выпуска
-
№АртикулНазвание
-
12603-220 SHOCK, SKI (INC. 2, 6)SHOCK, SKI (INC. 2, 6)
-
22603-251 SLEEVE, WEARSLEEVE, WEAR
-
32603-249 ADJUSTER, SPRINGADJUSTER, SPRING
-
42603-250 SLEEVE, SHOCKSLEEVE, SHOCK
-
50603-955 BUSHING, SHOCKBUSHING, SHOCK
-
61603-209 SLEEVE, SHOCKSLEEVE, SHOCK
-
71703-354 SPRING, COMPRESSIONSPRING, COMPRESSION
-
81603-889 RETAINER, SPRINGRETAINER, SPRING
-
91603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
100623-991 WASHERWASHER
-
118048-486 NUT, LOCKNUT, LOCK
-
128020-232 SCREW, CAPSCREW, CAP
-
130603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
141703-146 SWAY BARSWAY BAR
-
151603-211 BEARINGBEARING
-
162603-270 ARM, SWAY BARARM, SWAY BAR
-
178048-426 NUT, LOCKNUT, LOCK
-
188020-137 SCREW, CAPSCREW, CAP
-
191603-002 LINK, SWAY BARLINK, SWAY BAR
-
208020-225 SCREW, CAPSCREW, CAP
-
218020-224 SCREW, CAPSCREW, CAP
