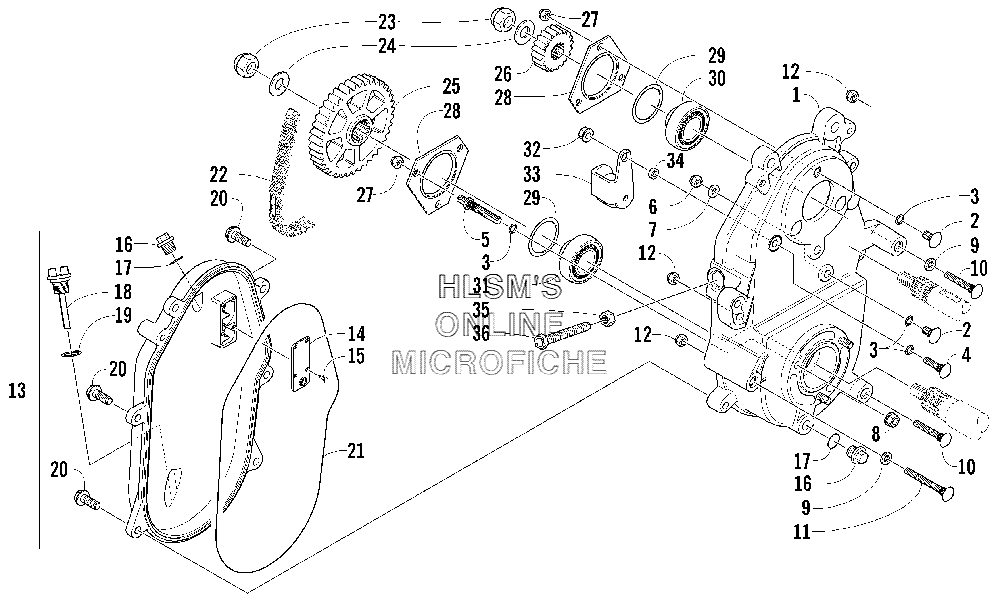

DRIVE/DROPCASE ASSY. для Arctic Cat Sabercat 600 (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10702-490 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
68042-426 NUT, LOCKNUT, LOCK
-
70623-094 WASHERWASHER
-
88048-426 NUT, LOCKNUT, LOCK
-
98050-252 WASHERWASHER
-
108011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
111623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
128040-426 NUT, LOCKNUT, LOCK
-
137996-258 COVER, DROPCASE, ASSY. (INC. 14, 15 AND ONE NO. 16, 17)COVER, DROPCASE, ASSY. (INC. 14, 15 AND ONE NO. 16, 17)
-
141602-152 COVER, OIL VENTCOVER, OIL VENT
-
150623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
160623-293 PLUG, DROPCASEPLUG, DROPCASE
-
171602-213 O-RINGO-RING
-
180602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
190670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
208020-134 SCREW, CAPSCREW, CAP
-
210602-437 SEAL, DROPCASESEAL, DROPCASE
-
221602-042 CHAIN, 72PCHAIN, 72P
-
221602-041 CHAIN, 70P (OVER 5, 000 FT ALT.)CHAIN, 70P (OVER 5, 000 FT ALT.)
-
230623-465 NUT, LOCKNUT, LOCK
-
240623-231 WASHER, SPRINGWASHER, SPRING
-
250602-453 SPROCKET (40 TEETH)SPROCKET (40 TEETH)
-
250602-451 SPROCKET (39 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (39 TEETH) (OVER 5, 000 FT ALT.)
-
260602-452 SPROCKET (23 TEETH)SPROCKET (23 TEETH)
-
260602-456 SPROCKET (20 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (20 TEETH) (OVER 5, 000 FT ALT.)
-
278041-426 NUT, LOCKNUT, LOCK
-
281602-521 PLATE, FLANGEPLATE, FLANGE
-
290107-003 SEAL, O-RINGSEAL, O-RING
-
301602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
311602-051 BEARING, 1 IN.BEARING, 1 IN.
-
328048-366 NUT, LOCKNUT, LOCK
-
330702-397 ARM, TIGHTENER, ASSY.ARM, TIGHTENER, ASSY.
-
340602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
350123-150 NUTNUT
-
360602-638 SCREW, CHAIN ROLLERSCREW, CHAIN ROLLER
