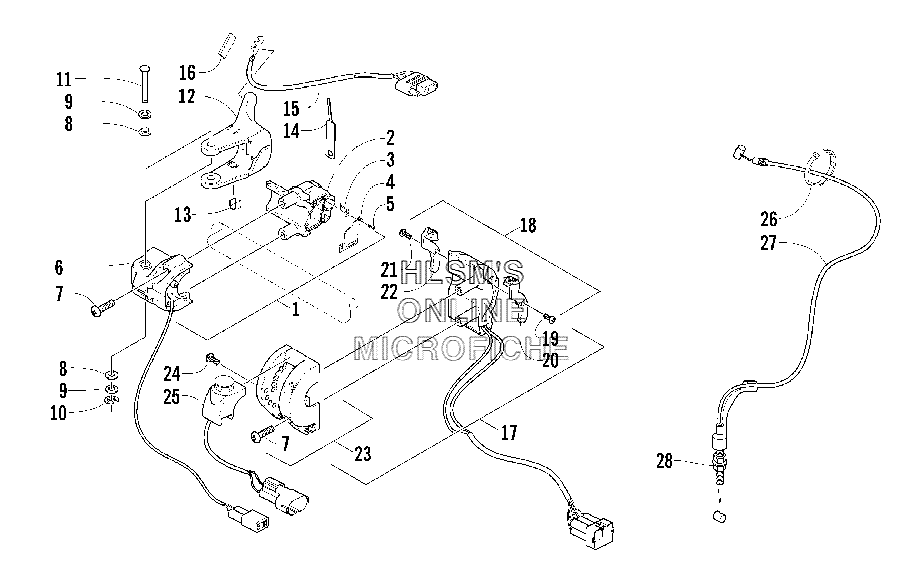

CONTROL ASSY. для Arctic Cat Sabercat 700 EFI EXT (Green) - 2004 года выпуска
-
№АртикулНазвание
-
10609-632 CONTROL, THROTTLE, ASSY. (INC. 2, 6 AND TWO NO. 7)CONTROL, THROTTLE, ASSY. (INC. 2, 6 AND TWO NO. 7)
-
20609-576 CONTROL, HOUSING HALF (INC. 3, 5)CONTROL, HOUSING HALF (INC. 3, 5)
-
30609-611 CLIP, RETAININGCLIP, RETAINING
-
40609-615 PLATEPLATE
-
50609-612 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
60609-633 CONTROL, SWITCH HALFCONTROL, SWITCH HALF
-
70609-604 SCREW, MACHINESCREW, MACHINE
-
80609-501 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
90609-036 WASHERWASHER
-
100609-040 E, RINGE, RING
-
110609-577 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
120609-565 LEVER, THROTTLELEVER, THROTTLE
-
130609-595 CLIP, RETAININGCLIP, RETAINING
-
141639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
-
150609-623 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
160617-248 PAD, INSULATORPAD, INSULATOR
-
170609-628 CONTROL, STOP SWITCH/WARMER, ASSY. (INC. TWO NO. 7 AND 18, 25)CONTROL, STOP SWITCH/WARMER, ASSY. (INC. TWO NO. 7 AND 18, 25)
-
180609-636 CONTROL, WARMER HALF (INC. 19, 22)CONTROL, WARMER HALF (INC. 19, 22)
-
190609-605 SCREW, MACHINESCREW, MACHINE
-
200609-573 KNOB, HANDWARMERKNOB, HANDWARMER
-
210609-606 SCREW, MACHINESCREW, MACHINE
-
220609-572 KNOB, THUMBWARMERKNOB, THUMBWARMER
-
230609-635 CONTROL, STOP SWITCH HALF (INC. 24, 25)CONTROL, STOP SWITCH HALF (INC. 24, 25)
-
240609-607 SCREW, MACHINESCREW, MACHINE
-
250609-569 SWITCH, STOPSWITCH, STOP
-
260123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
270687-155 CABLE, THROTTLE (INC. 28)CABLE, THROTTLE (INC. 28)
-
280623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
