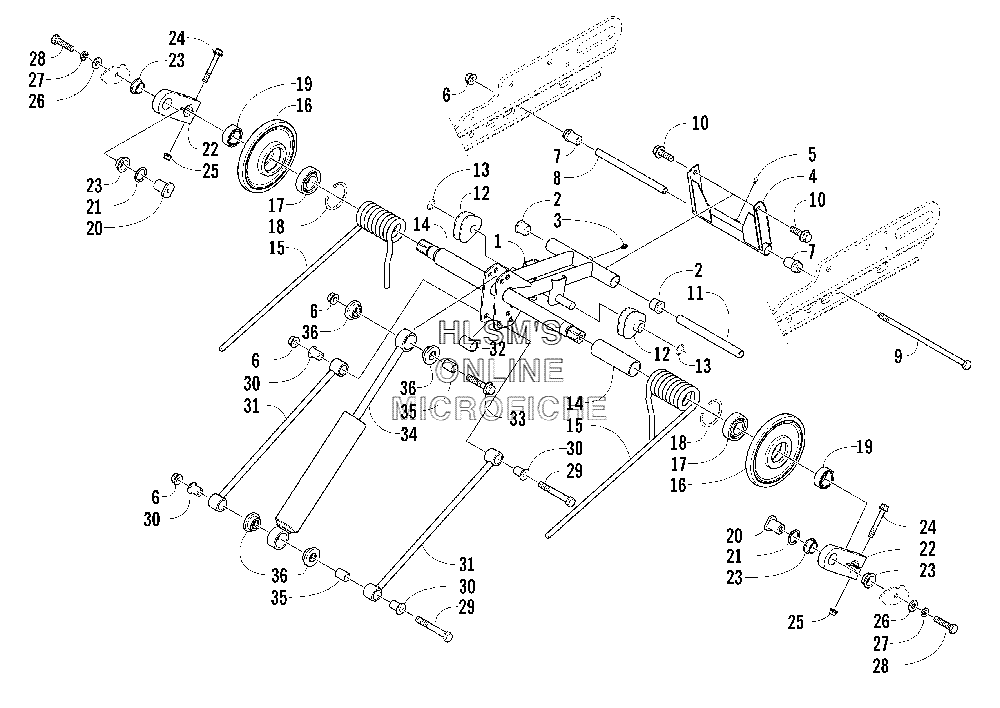

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat T660 Touring Taupe International - 2004 года выпуска
-
№АртикулНазвание
-
11704-012 ARM, IDLER (INC. 2, 3)ARM, IDLER (INC. 2, 3)
-
21604-100 BUSHINGBUSHING
-
31623-010 FITTING, GREASEFITTING, GREASE
-
40704-727 ARM (REAR) (INC. 5)ARM (REAR) (INC. 5)
-
50623-922 FITTING, GREASEFITTING, GREASE
-
68048-486 NUT, LOCKNUT, LOCK
-
71604-307 AXLE, SERRATEDAXLE, SERRATED
-
80604-194 TUBE, AXLETUBE, AXLE
-
91623-037 SCREW, CAPSCREW, CAP
-
108020-220 SCREW, CAPSCREW, CAP
-
111604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
121604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
121604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
130623-138 RING, RETAINERRING, RETAINER
-
140114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
151704-146 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
151704-147 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
161604-690 WHEEL, IDLER (INC. 17, 18)WHEEL, IDLER (INC. 17, 18)
-
170107-598 BEARINGBEARING
-
180123-798 RING, RETAININGRING, RETAINING
-
191604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
201604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
211604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
220704-981 ARM, PIVOT IDLER (INC. 23, 25)ARM, PIVOT IDLER (INC. 23, 25)
-
231604-202 BUSHING, FLAREDBUSHING, FLARED
-
248020-138 SCREW, CAPSCREW, CAP
-
258048-426 NUT, LOCKNUT, LOCK
-
260623-044 WASHERWASHER
-
278051-277 WASHER, LOCKWASHER, LOCK
-
288002-224 SCREW, CAPSCREW, CAP
-
290623-793 SCREW, CAPSCREW, CAP
-
301604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
310704-928 LINK, INNER CARRIAGELINK, INNER CARRIAGE
-
320704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
338020-226 SCREW, CAPSCREW, CAP
-
342604-637 SHOCK ABSORBER ARM (REAR) (INC. 35, 36)SHOCK ABSORBER ARM (REAR) (INC. 35, 36)
-
351604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
360604-310 BUSHING, SHOCKBUSHING, SHOCK
