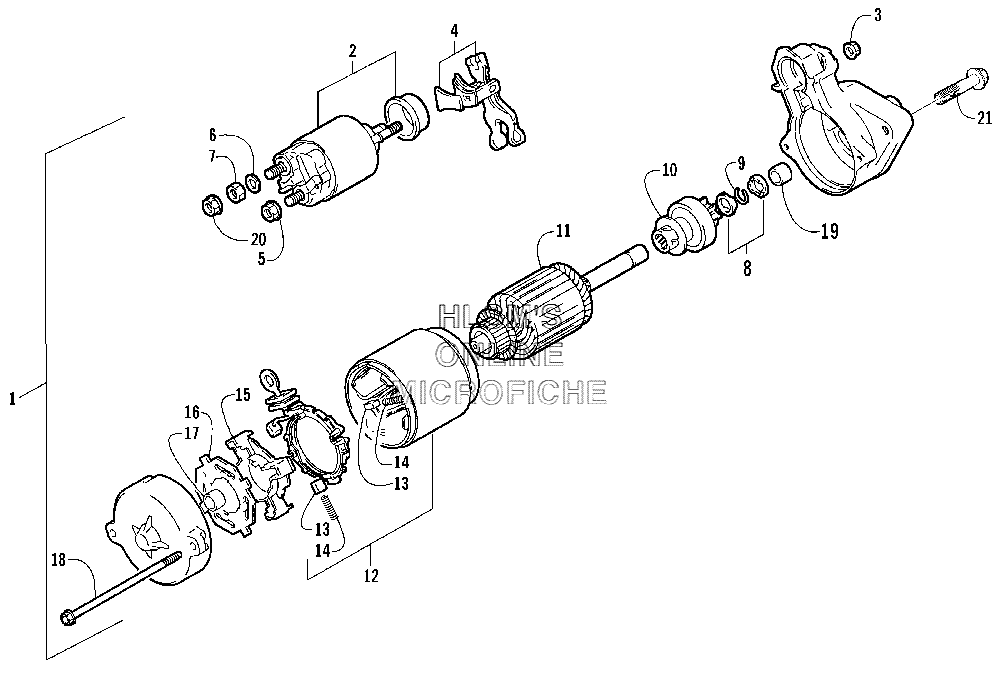

STARTER MOTOR ASSEMBLY для Arctic Cat T660 Turbo Touring (Black) - 2004 года выпуска
-
№АртикулНазвание
-
13006-244 MOTOR, STARTER, ASSEMBLY (INC. 2, 19)MOTOR, STARTER, ASSEMBLY (INC. 2, 19)
-
23006-255 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
33004-488 NUTNUT
-
43006-254 LEVER, PINION DRIVELEVER, PINION DRIVE
-
53004-326 NUTNUT
-
63004-280 WASHER, LOCKWASHER, LOCK
-
73004-334 NUTNUT
-
83006-257 NUT, PINION STOP (INC. 9)NUT, PINION STOP (INC. 9)
-
93006-259 RING, SNAPRING, SNAP
-
103006-260 PINION ASSEMBLYPINION ASSEMBLY
-
113006-258 ARMATUREARMATURE
-
123006-246 COMMUTATOR ASSEMBLY (INC. 13)COMMUTATOR ASSEMBLY (INC. 13)
-
133006-247 BRUSHBRUSH
-
143006-248 SPRING, BRUSHSPRING, BRUSH
-
153006-252 HOLDER, BRUSHHOLDER, BRUSH
-
163006-253 INSULATORINSULATOR
-
173006-251 BUSHINGBUSHING
-
183006-256 THROUGH, BOLTTHROUGH, BOLT
-
193006-249 BUSHINGBUSHING
-
203004-326 NUTNUT
-
218408-820 SCREW, CAPSCREW, CAP
