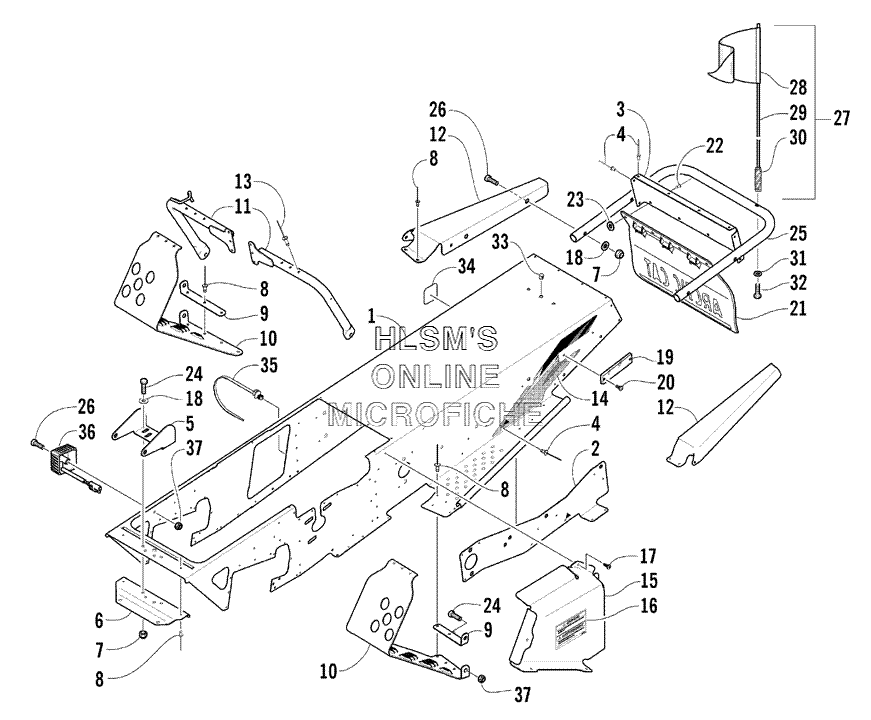

CHASSIS- FOOTREST- AND REAR BUMPER ASSY. для Arctic Cat ZR 120 - 2004 года выпуска
-
№АртикулНазвание
-
10718-996 TUNNEL ASSY. (INC. 2, 4)TUNNEL ASSY. (INC. 2, 4)
-
22706-156 PLATE, REINFORCEMENT, TUNNEL (RIGHT)PLATE, REINFORCEMENT, TUNNEL (RIGHT)
-
22706-157 PLATE, REINFORCEMENT, TUNNEL (LEFT)PLATE, REINFORCEMENT, TUNNEL (LEFT)
-
32706-158 PLATE, COVER, TUNNELPLATE, COVER, TUNNEL
-
40123-418 RIVETRIVET
-
52706-141 BRACKET, MOUNTING, HOOD (LOWER)BRACKET, MOUNTING, HOOD (LOWER)
-
62606-019 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
78040-366 NUT, LOCKNUT, LOCK
-
88060-504 RIVETRIVET
-
92706-180 BRACKET, SUPPORT, FOOTREST (RIGHT)BRACKET, SUPPORT, FOOTREST (RIGHT)
-
92706-181 BRACKET, SUPPORT, FOOTREST (LEFT)BRACKET, SUPPORT, FOOTREST (LEFT)
-
101606-784 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
101606-785 FOOTREST (LEFT)FOOTREST (LEFT)
-
111706-283 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
111706-041 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
121606-816 END CAP BUMPER (REAR) (RIGHT)END CAP BUMPER (REAR) (RIGHT)
-
121606-817 END CAP BUMPER (REAR) (LEFT)END CAP BUMPER (REAR) (LEFT)
-
138060-506 RIVETRIVET
-
144611-758 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
144611-759 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
152706-217 COVER, SPROCKET, DRIVENCOVER, SPROCKET, DRIVEN
-
163611-754 DECAL, WARNING, COVERDECAL, WARNING, COVER
-
170623-301 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
188050-217 WASHERWASHER
-
190606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
200623-269 CLIP, RETAININGCLIP, RETAINING
-
212606-819 SNOWFLAPSNOWFLAP
-
228060-628 RIVETRIVET
-
230123-802 WASHERWASHER
-
248002-040 SCREW, CAPSCREW, CAP
-
251706-018 BUMPER (REAR)BUMPER (REAR)
-
268002-044 SCREW, CAPSCREW, CAP
-
271706-105 FLAG, SAFETY, ASSY. (INC. 28, 32)FLAG, SAFETY, ASSY. (INC. 28, 32)
-
281706-104 FLAG, SAFETYFLAG, SAFETY
-
291606-954 POLE, SAFETY FLAGPOLE, SAFETY FLAG
-
302606-010 MOUNTING, SAFETY FLAG, ASSY.MOUNTING, SAFETY FLAG, ASSY.
-
318050-247 WASHERWASHER
-
328002-134 SCREW, CAPSCREW, CAP
-
330623-562 PLUG, HOLEPLUG, HOLE
-
340411-053 DECAL, "CE"DECAL, "CE"
-
350623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
360630-001 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
378041-366 NUT, LOCKNUT, LOCK
