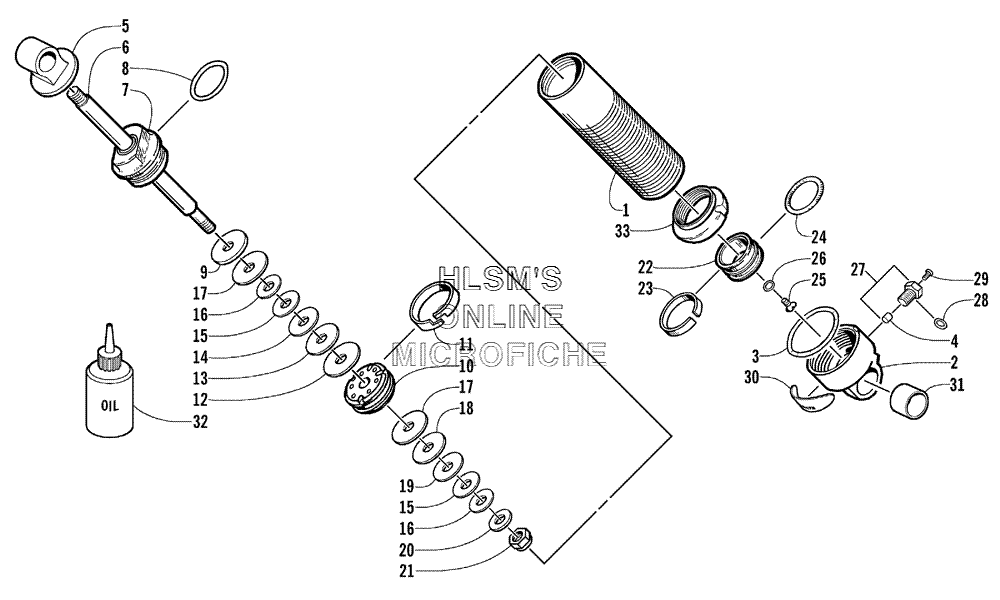

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 900 (Black-Red) - 2004 года выпуска
-
№АртикулНазвание
-
-0704-738 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-394 BODY, SHOCKBODY, SHOCK
-
21604-294 END CAP, SHOCKEND CAP, SHOCK
-
31604-280 O-RING, END CAPO-RING, END CAP
-
51604-796 EYELET, SHOCKEYELET, SHOCK
-
61604-542 ROD, SHOCKROD, SHOCK
-
70704-386 CAP, SHOCK (INC. 8)CAP, SHOCK (INC. 8)
-
81604-271 O-RINGO-RING
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
100603-953 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
111604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
121603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
131603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
141603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
151603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
161603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
171603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
181603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
191603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
201604-273 WASHER, BACKUPWASHER, BACKUP
-
210623-696 NUT, LOCKNUT, LOCK
-
221604-276 PISTON, FLOATINGPISTON, FLOATING
-
231604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
241604-277 O-RINGO-RING
-
250623-697 SCREW, RELIEFSCREW, RELIEF
-
260423-182 O-RINGO-RING
-
270704-383 VALVE, PRESSURE (INC. 4 AND 28)VALVE, PRESSURE (INC. 4 AND 28)
-
281604-284 O-RING, VALVEO-RING, VALVE
-
290624-433 SCREW, MACHINESCREW, MACHINE
-
303611-007 DECAL, WARNINGDECAL, WARNING
-
311604-791 SLEEVE, SHOCK EYELETSLEEVE, SHOCK EYELET
-
321639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
330603-960 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
