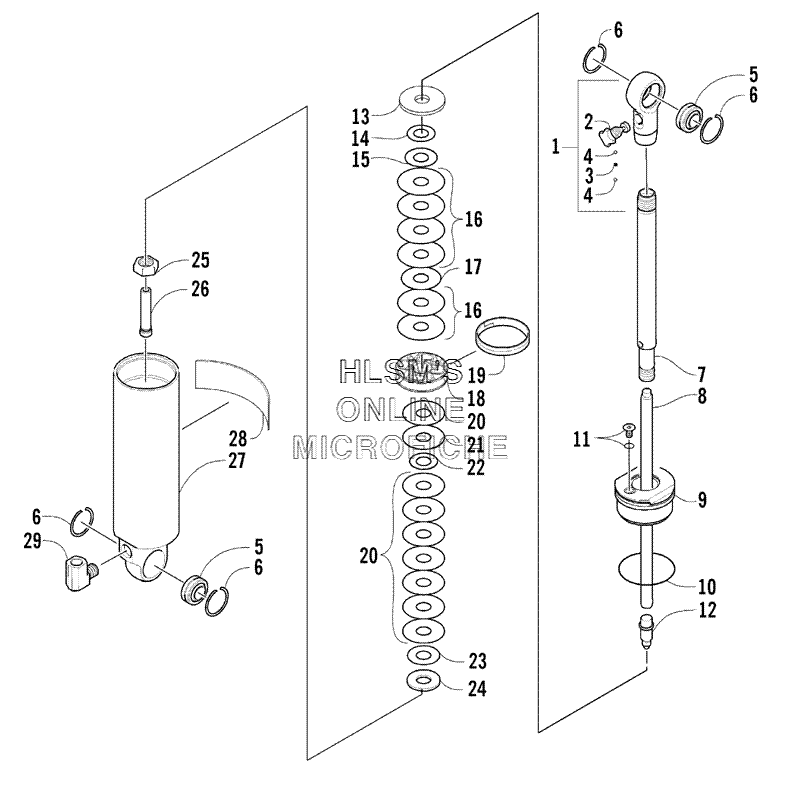

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat AC SNO PRO MOD - 2005 года выпуска
-
№АртикулНазвание
-
-1704-350 SHOCK ABSORBER ASSEMBLYSHOCK ABSORBER ASSEMBLY
-
-3639-107 SHOCK REBUILD KITSHOCK REBUILD KIT
-
12604-961 EYELET, SHOCK, ASSEMBLY (INC. 2, 4)EYELET, SHOCK, ASSEMBLY (INC. 2, 4)
-
22604-958 KNOB, DAMPING ADJUSTKNOB, DAMPING ADJUST
-
32604-960 SPRINGSPRING
-
41604-315 BALL, ADJUSTERBALL, ADJUSTER
-
51604-664 BEARING, SHOCK EYELETBEARING, SHOCK EYELET
-
62604-714 RING, RETAININGRING, RETAINING
-
72604-955 SHAFT, SHOCKSHAFT, SHOCK
-
82604-954 ROD, DAMPING ADJUST, ASSEMBLYROD, DAMPING ADJUST, ASSEMBLY
-
92604-956 BEARING ASSEMBLY (INC. 10)BEARING ASSEMBLY (INC. 10)
-
112604-530 SCREWSCREW
-
122604-953 NEEDLE, DAMPINGNEEDLE, DAMPING
-
132604-449 WASHER, TOP OUTWASHER, TOP OUT
-
142604-480 VALVE, SHOCK 0.950 X 0.010 IN.VALVE, SHOCK 0.950 X 0.010 IN.
-
152604-484 VALVE, SHOCK 1.100 X 0.006 IN.VALVE, SHOCK 1.100 X 0.006 IN.
-
162604-503 VALVE, SHOCK 1.600 X 0.012 IN.VALVE, SHOCK 1.600 X 0.012 IN.
-
172604-490 VALVE, SHOCK 1.350 X 0.006 IN.VALVE, SHOCK 1.350 X 0.006 IN.
-
182604-673 PISTON, DAMPINGPISTON, DAMPING
-
202604-499 VALVE, SHOCK 1.425 X 0.015 IN.VALVE, SHOCK 1.425 X 0.015 IN.
-
212604-496 VALVE, SHOCK 1.425 X 0.008 IN.VALVE, SHOCK 1.425 X 0.008 IN.
-
222604-478 VALVE, SHOCK 0.950 X 0.006 IN.VALVE, SHOCK 0.950 X 0.006 IN.
-
232604-488 VALVE, SHOCK 1.100 X 0.015 IN.VALVE, SHOCK 1.100 X 0.015 IN.
-
242603-354 WASHER, BACKUPWASHER, BACKUP
-
252604-448 NUTNUT
-
262604-674 JET, DAMPING ADJUSTJET, DAMPING ADJUST
-
272604-957 BODY, SHOCKBODY, SHOCK
-
281603-922 DECAL, SHOCKDECAL, SHOCK
-
292604-950 FITTING, ELBOWFITTING, ELBOW
