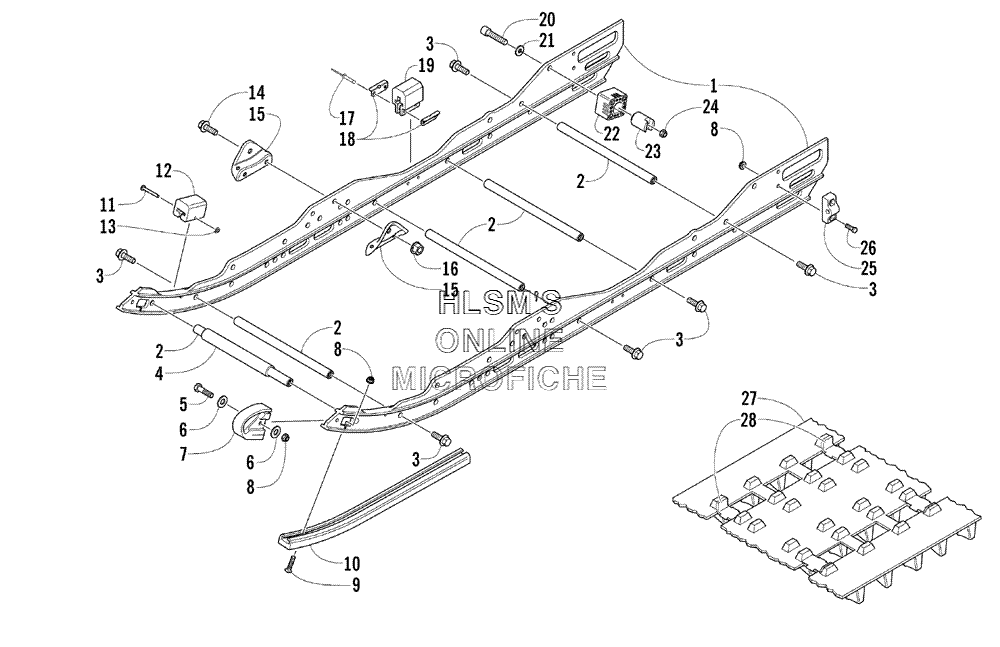

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat F5 Firecat (RED) - 2005 года выпуска
-
№АртикулНазвание
-
-7998-041 SKID FRAME ASSYSKID FRAME ASSY
-
12604-887 RAIL, FORMEDRAIL, FORMED
-
20604-930 AXLE (INNER)AXLE (INNER)
-
31623-248 SCREW, CAPSCREW, CAP
-
42604-281 SPACERSPACER
-
58002-043 SCREW, CAPSCREW, CAP
-
68050-217 WASHERWASHER
-
72604-842 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88047-366 NUT, LOCKNUT, LOCK
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
102604-543 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
148020-132 SCREW, CAPSCREW, CAP
-
152604-593 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
168048-426 NUT, LOCKNUT, LOCK
-
178060-633 RIVETRIVET
-
180604-967 BRACKET, RETAININGBRACKET, RETAINING
-
190604-918 PAD, SHOCKPAD, SHOCK
-
208005-676 SCREW, CAPSCREW, CAP
-
210623-044 WASHERWASHER
-
222604-860 BLOCK ARM (REAR) COUPLERBLOCK ARM (REAR) COUPLER
-
232604-046 BUSHING ARM (REAR) COUPLERBUSHING ARM (REAR) COUPLER
-
248041-486 NUT, LOCKNUT, LOCK
-
250704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
268002-042 SCREW, CAPSCREW, CAP
-
271602-500 TRACK ASSEMBLY (INC. 28)TRACK ASSEMBLY (INC. 28)
-
281602-268 CLIP, GUIDECLIP, GUIDE
