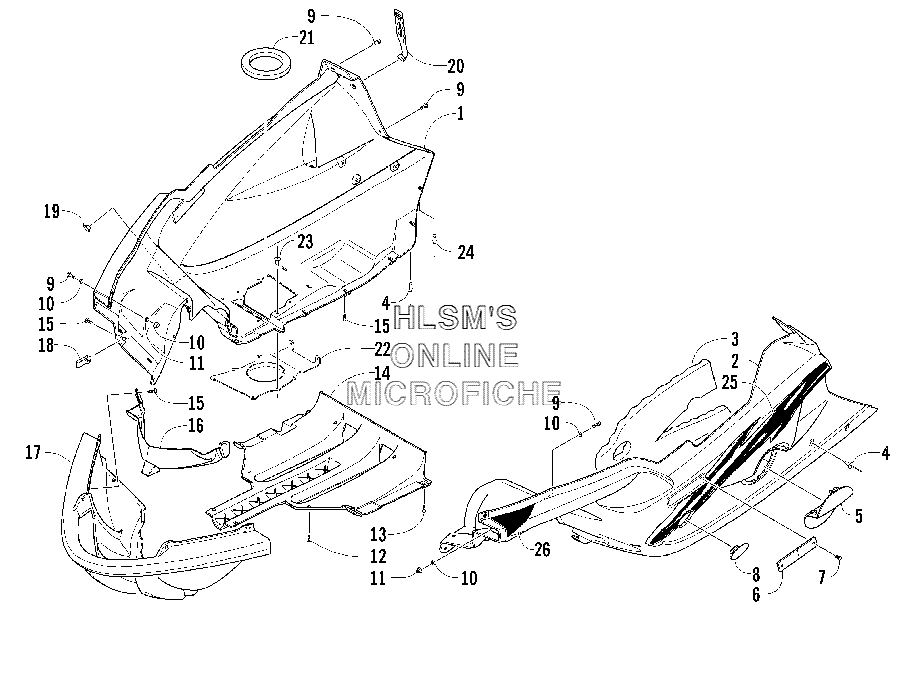

BELLY PAN ASSEMBLY для Arctic Cat F7 Firecat EFI EXT (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
12606-646 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
23606-913 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-462 FOAM, BELLY PANFOAM, BELLY PAN
-
48061-708 RIVETRIVET
-
53606-912 PANEL, ACCESS, DRIVEN CLUTCHPANEL, ACCESS, DRIVEN CLUTCH
-
60606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
82606-650 PANEL, ACCESS, DRIVE CLUTCHPANEL, ACCESS, DRIVE CLUTCH
-
98017-581 SCREW, MACHINESCREW, MACHINE
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
131623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
143606-085 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
150623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-911 SCREEN, BELLY PAN (CENTER)SCREEN, BELLY PAN (CENTER)
-
173606-086 BUMPER (FRONT)BUMPER (FRONT)
-
181623-030 NUT, SPEEDNUT, SPEED
-
193606-050 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
202606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
211612-603 SEAL, EXHAUSTSEAL, EXHAUST
-
221612-686 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
238061-508 RIVETRIVET
-
248061-710 RIVETRIVET
-
256611-002 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
256611-003 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
