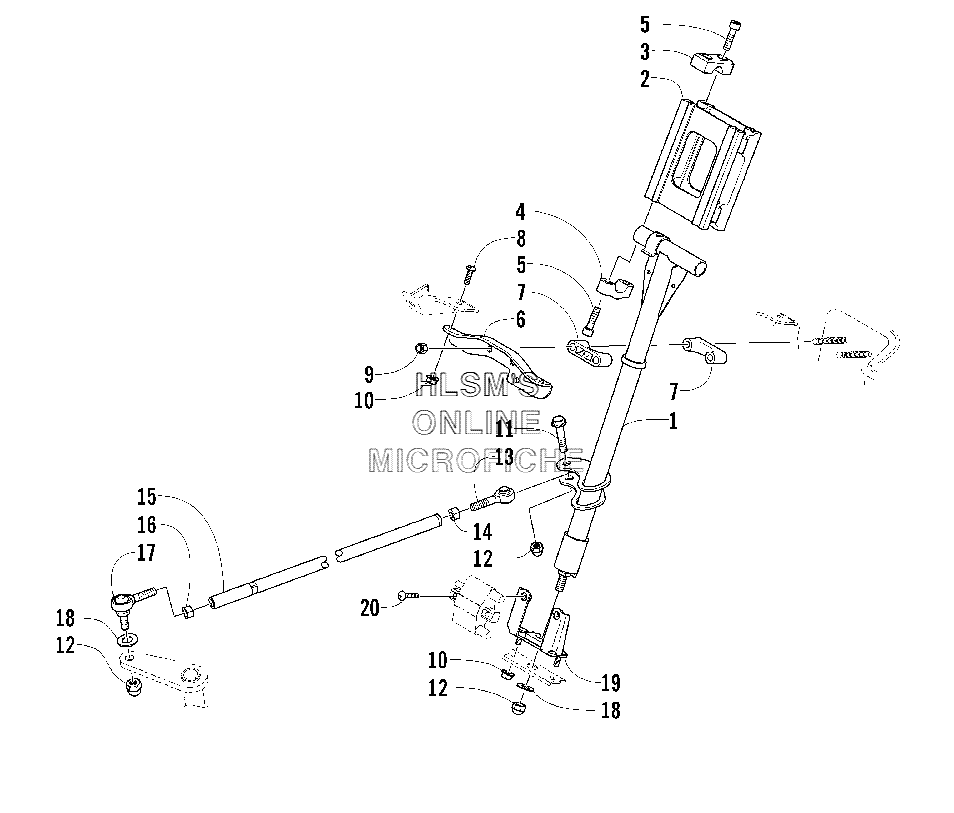

STEERING POST ASSEMBLY для Arctic Cat F7 Firecat (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10705-961 POST, STEERINGPOST, STEERING
-
20605-513 RISER, HANDLEBAR, 4.44 IN.RISER, HANDLEBAR, 4.44 IN.
-
20605-491 RISER, HANDLEBAR, 5.44 IN.RISER, HANDLEBAR, 5.44 IN.
-
20605-512 RISER, HANDLEBAR, 6.44 IN.RISER, HANDLEBAR, 6.44 IN.
-
20605-514 RISER, HANDLEBAR, 2.44 IN.RISER, HANDLEBAR, 2.44 IN.
-
30705-355 CAP, ADJUSTING BLOCK (UPPER)CAP, ADJUSTING BLOCK (UPPER)
-
40605-676 CAP, ADJUSTING BLOCK (LOWER)CAP, ADJUSTING BLOCK (LOWER)
-
50623-872 SCREW, CAPSCREW, CAP
-
60605-649 PLATE, RETAININGPLATE, RETAINING
-
70605-576 BLOCK, MOUNTING, STEERING POSTBLOCK, MOUNTING, STEERING POST
-
88017-579 SCREW, MACHINESCREW, MACHINE
-
98040-426 NUT, LOCKNUT, LOCK
-
108048-366 NUT, LOCKNUT, LOCK
-
118004-225 SCREW, CAPSCREW, CAP
-
120623-025 NUT, LOCKNUT, LOCK
-
130605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
140623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
150605-672 TUBE, TIE RODTUBE, TIE ROD
-
160123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
170605-511 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
180623-044 WASHERWASHER
-
190705-947 STOP, STEERING POSTSTOP, STEERING POST
-
208017-402 SCREW, MACHINESCREW, MACHINE
