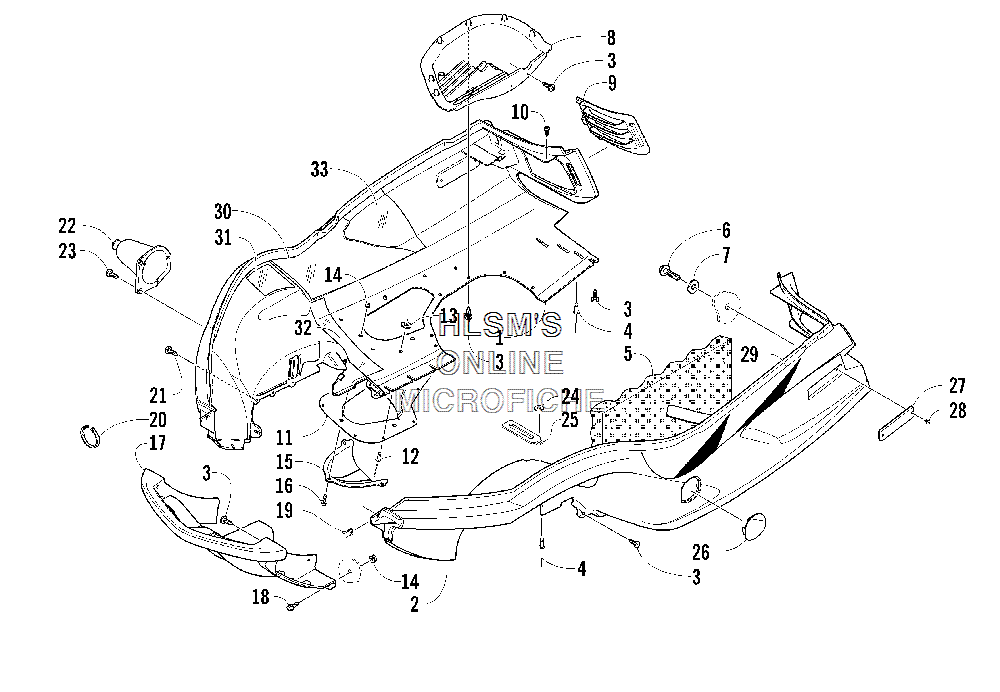

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat King Cat 900 EFI EARLY BUILD - 2005 года выпуска
-
№АртикулНазвание
-
12706-438 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22706-439 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
48061-508 RIVETRIVET
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70623-184 WASHERWASHER
-
82606-856 GUARD, DROPCASEGUARD, DROPCASE
-
93606-216 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
93606-217 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
100623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
111612-737 SHIELD, EXHAUSTSHIELD, EXHAUST
-
128061-410 RIVETRIVET
-
130623-290 WASHERWASHER
-
148048-366 NUT, LOCKNUT, LOCK
-
151612-713 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
168017-579 SCREW, MACHINESCREW, MACHINE
-
172706-426 BUMPER (FRONT)BUMPER (FRONT)
-
188020-040 SCREW, CAPSCREW, CAP
-
190623-427 NUT, UNUT, U
-
200123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
210623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
220605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
220605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
230623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
240123-149 WASHERWASHER
-
253002-964 CLAMP, WIRECLAMP, WIRE
-
263606-204 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
270606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
280623-269 CLIP, RETAININGCLIP, RETAINING
-
295611-890 DECAL, BELLY PAN (UPPER/RIGHT)DECAL, BELLY PAN (UPPER/RIGHT)
-
295611-891 DECAL, BELLY PAN (UPPER/LEFT)DECAL, BELLY PAN (UPPER/LEFT)
-
302606-376 FOIL, PROTECTIVE (UPPER/FRONT)FOIL, PROTECTIVE (UPPER/FRONT)
-
312606-387 FOIL, PROTECTIVE (LOWER/FRONT)FOIL, PROTECTIVE (LOWER/FRONT)
-
320619-206 TAPE, FOILTAPE, FOIL
-
332606-375 FOIL, PROTECTIVE (UPPER/REAR)FOIL, PROTECTIVE (UPPER/REAR)
