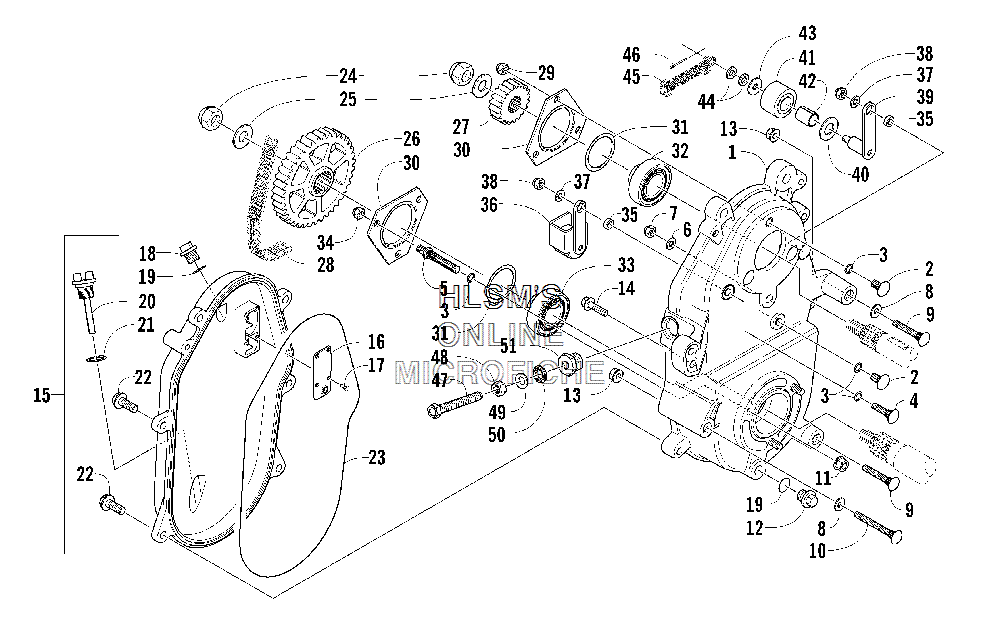

DRIVE/DROPCASE ASSEMBLY для Arctic Cat King Cat 900 EFI (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
10702-421 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
88050-252 WASHERWASHER
-
98011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
101623-121 BOLT, CARRIAGEBOLT, CARRIAGE
-
118048-426 NUT, LOCKNUT, LOCK
-
120623-293 PLUG, DROPCASEPLUG, DROPCASE
-
138047-426 NUT, LOCKNUT, LOCK
-
148020-135 SCREW, CAPSCREW, CAP
-
157996-259 COVER, DROPCASE, ASSEMBLY (INC. 16, 18 AND ONE NO. 19)COVER, DROPCASE, ASSEMBLY (INC. 16, 18 AND ONE NO. 19)
-
161602-152 COVER, OIL VENTCOVER, OIL VENT
-
170623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180123-333 PLUG, DROPCASEPLUG, DROPCASE
-
191602-213 O-RINGO-RING
-
200602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
210670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
228020-134 SCREW, CAPSCREW, CAP
-
230602-437 SEAL, DROPCASESEAL, DROPCASE
-
240623-465 NUT, LOCKNUT, LOCK
-
250623-231 WASHER, SPRINGWASHER, SPRING
-
261602-394 SPROCKET (43 TEETH)SPROCKET (43 TEETH)
-
260602-453 SPROCKET (40 TEETH) (0, 3, 000 FT ALT.)SPROCKET (40 TEETH) (0, 3, 000 FT ALT.)
-
270602-973 SPROCKET (19 TEETH) (15 WIDE)SPROCKET (19 TEETH) (15 WIDE)
-
280602-972 CHAIN, 72P (15 WIDE)CHAIN, 72P (15 WIDE)
-
280602-968 CHAIN, 70P (15 WIDE)CHAIN, 70P (15 WIDE)
-
298041-426 NUT, LOCKNUT, LOCK
-
301602-521 PLATE, FLANGEPLATE, FLANGE
-
310107-003 SEAL, O-RINGSEAL, O-RING
-
321602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
331602-051 BEARING, 1 IN.BEARING, 1 IN.
-
348040-426 NUT, LOCKNUT, LOCK
-
360702-324 ARM, TIGHTENER, ASSEMBLYARM, TIGHTENER, ASSEMBLY
-
350602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
378050-217 WASHERWASHER
-
380623-122 NUT, LOCKNUT, LOCK
-
390702-115 ARM, TIGHTENERARM, TIGHTENER
-
400623-283 WASHERWASHER
-
410702-129 ROLLER, TIGHTENER (INC. 42)ROLLER, TIGHTENER (INC. 42)
-
420602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
430623-284 WASHERWASHER
-
448050-212 WASHERWASHER
-
450702-130 SPRING ASSEMBLYSPRING ASSEMBLY
-
460123-082 PIN, COTTERPIN, COTTER
-
471602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
480123-150 NUTNUT
-
498050-272 WASHERWASHER
-
500623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
510602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
