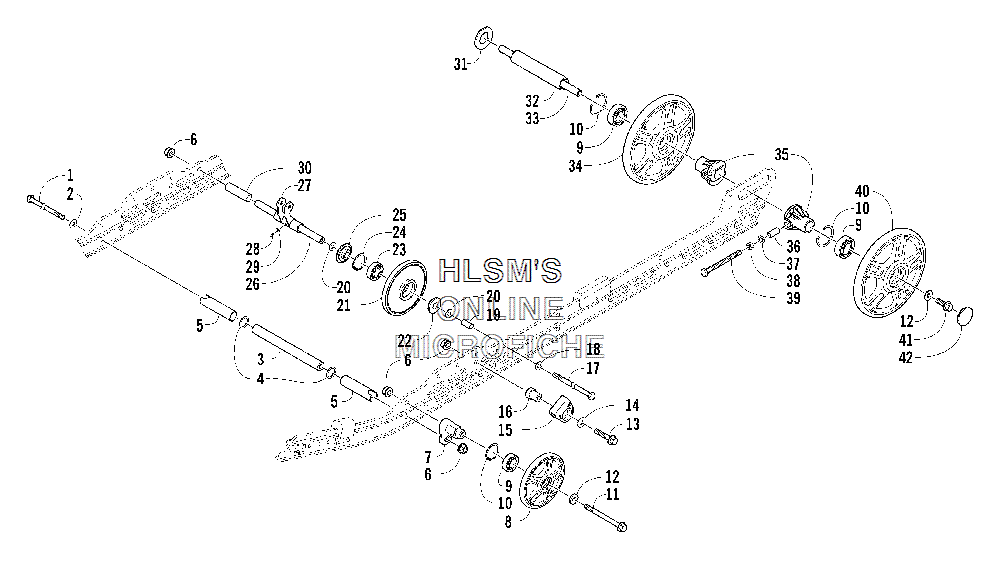

IDLER WHEEL ASSEMBLY для Arctic Cat King Cat 900 (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
10623-527 SCREW, CAPSCREW, CAP
-
20623-439 WASHERWASHER
-
31604-792 AXLEAXLE
-
40623-912 WASHERWASHER
-
51604-793 SPACER ARM FRONT SHOCKSPACER ARM FRONT SHOCK
-
68048-486 NUT, LOCKNUT, LOCK
-
72604-579 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
82604-198 WHEEL, IDLER (INC. 9, 10)WHEEL, IDLER (INC. 9, 10)
-
91604-847 BEARINGBEARING
-
100623-946 RING, RETAININGRING, RETAINING
-
118020-232 SCREW, CAPSCREW, CAP
-
120623-664 WASHERWASHER
-
138020-229 SCREW, CAPSCREW, CAP
-
148050-282 WASHERWASHER
-
152604-515 SLIDE, SPRINGSLIDE, SPRING
-
162604-378 BLOCK, SLIDEBLOCK, SLIDE
-
170623-907 SCREW, CAPSCREW, CAP
-
180623-044 WASHERWASHER
-
191604-213 SPACERSPACER
-
200623-675 WASHERWASHER
-
211604-684 WHEEL, IDLER (INC. 22, 25)WHEEL, IDLER (INC. 22, 25)
-
221604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
230107-598 BEARINGBEARING
-
240123-798 RING, RETAININGRING, RETAINING
-
251604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
261604-209 AXLE, INNERAXLE, INNER
-
271704-016 PIVOT, SHOCK (INC. 28, 29)PIVOT, SHOCK (INC. 28, 29)
-
281623-010 FITTING, GREASEFITTING, GREASE
-
291623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
300603-105 SPACERSPACER
-
310623-921 WASHERWASHER
-
321604-940 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
332604-283 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
342604-524 WHEEL, IDLER (INC. 9, 10)WHEEL, IDLER (INC. 9, 10)
-
352604-260 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
360704-854 SPACERSPACER
-
378051-277 WASHER, LOCKWASHER, LOCK
-
388042-486 NUTNUT
-
390623-123 SCREW, CAPSCREW, CAP
-
402604-564 WHEEL, IDLER (INC. 9, 10)WHEEL, IDLER (INC. 9, 10)
-
418020-223 SCREW, CAPSCREW, CAP
-
421604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
