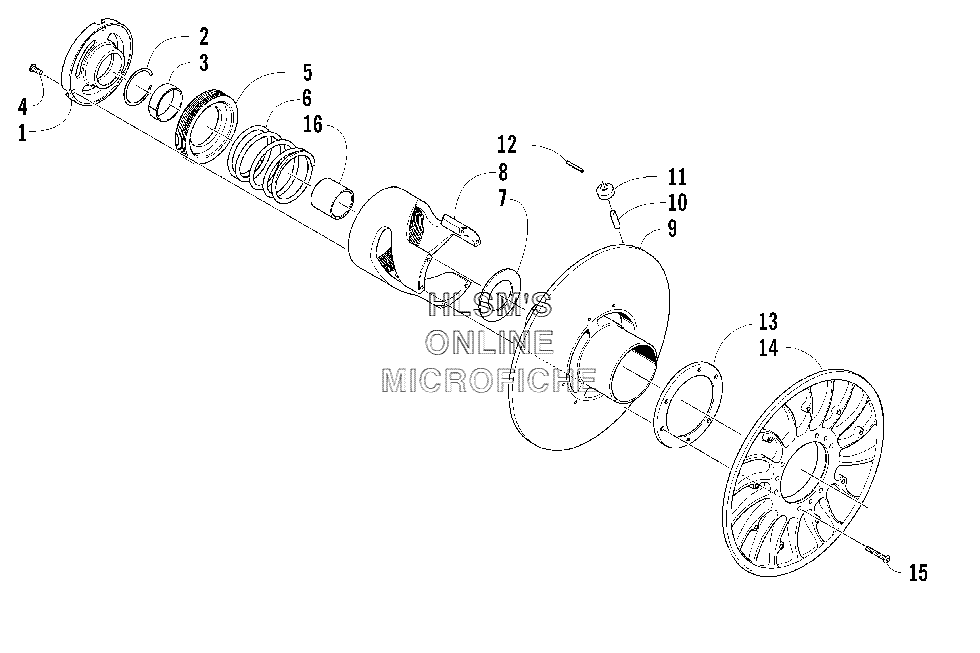

DRIVEN CLUTCH для Arctic Cat M5 141'' (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
-0726-189 DRIVEN CLUTCHDRIVEN CLUTCH
-
10748-595 COVER, TORQUE BRACKET (INC. 2, 3)COVER, TORQUE BRACKET (INC. 2, 3)
-
20648-433 RING, SNAPRING, SNAP
-
30648-009 BEARINGBEARING
-
41623-074 SCREW, MACHINESCREW, MACHINE
-
50648-439 ADJUSTER, SPRINGADJUSTER, SPRING
-
60648-693 SPRING, DRIVEN CLUTCH (WHITE)SPRING, DRIVEN CLUTCH (WHITE)
-
70648-720 SPACERSPACER
-
80648-448 BRACKET, TORQUE 36°BRACKET, TORQUE 36°
-
90748-614 SHEAVE, STATIONARY (INC. 10, 12)SHEAVE, STATIONARY (INC. 10, 12)
-
100648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
110648-139 ROLLER, CAMROLLER, CAM
-
128070-224 PIN, SPRINGPIN, SPRING
-
130648-688 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
140748-591 SHEAVE, MOVABLESHEAVE, MOVABLE
-
151623-258 SCREW, MACHINESCREW, MACHINE
-
160648-437 SEAT, SPRINGSEAT, SPRING
