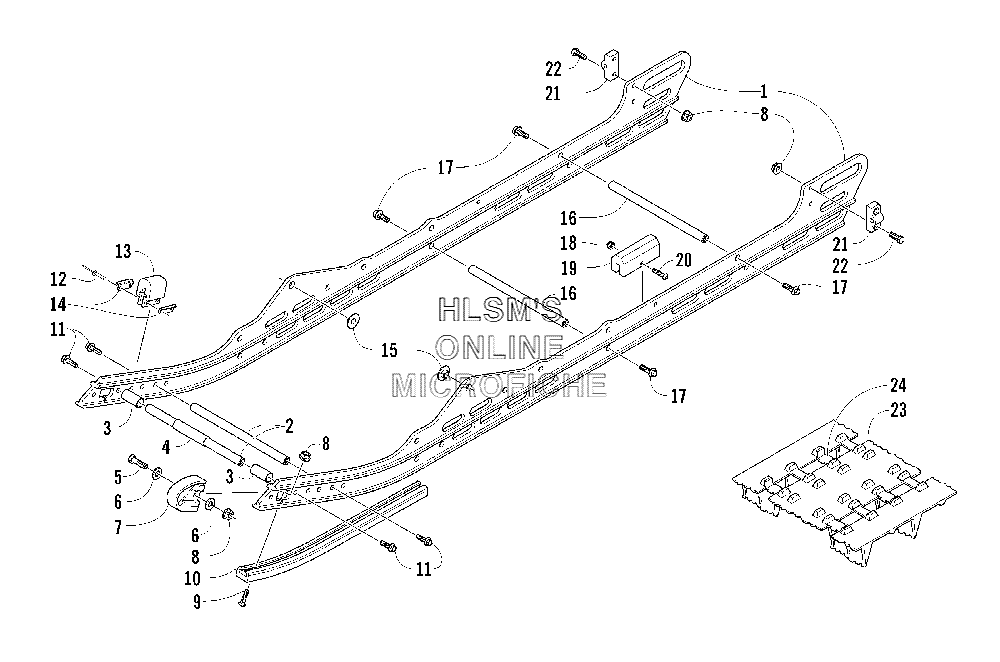

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat M6 EFI 141'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
-1704-337 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12604-730 RAIL, FORMED, STAMPEDRAIL, FORMED, STAMPED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
32604-659 SPACERSPACER
-
42604-660 SPACERSPACER
-
58002-043 SCREW, CAPSCREW, CAP
-
68050-217 WASHERWASHER
-
72604-724 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
88047-366 NUT, LOCKNUT, LOCK
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
102604-745 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
118020-134 SCREW, CAPSCREW, CAP
-
128060-633 RIVET, SOLIDRIVET, SOLID
-
130604-918 PAD, SHOCKPAD, SHOCK
-
140604-967 BRACKET, RETAININGBRACKET, RETAINING
-
152604-733 INSERT, RAILINSERT, RAIL
-
160604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
178020-222 SCREW, CAPSCREW, CAP
-
188041-246 NUT, LOCKNUT, LOCK
-
191604-607 PAD, SHOCKPAD, SHOCK
-
208017-405 SCREW, MACHINESCREW, MACHINE
-
210704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
228002-042 SCREW, CAPSCREW, CAP
-
231602-524 TRACK ASSEMBLY (INC. 24)TRACK ASSEMBLY (INC. 24)
-
241602-907 CLIP, GUIDECLIP, GUIDE
