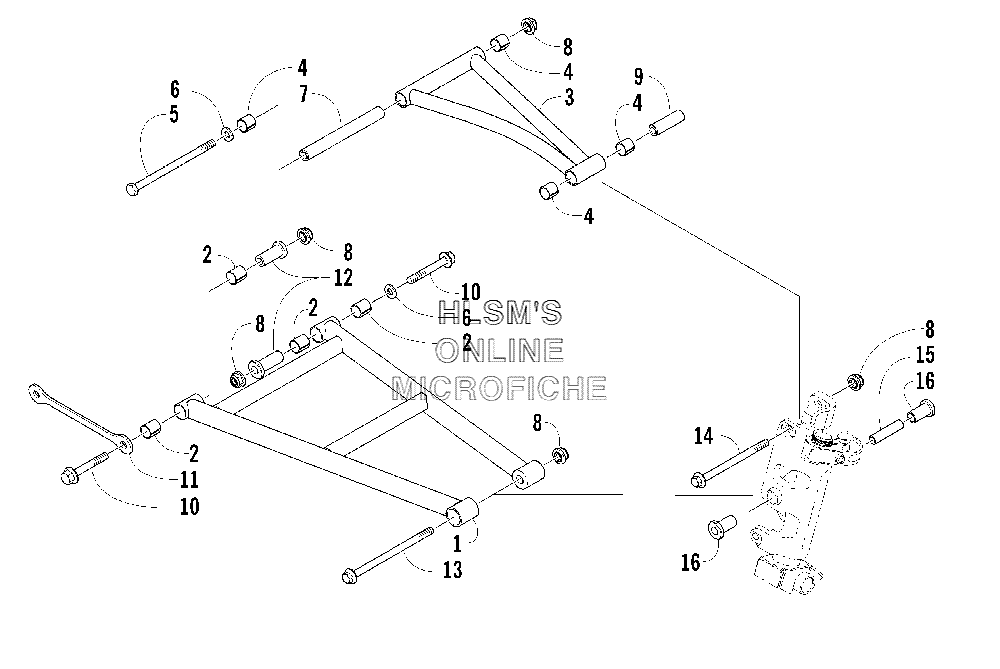

A-ARM ASSEMBLY для Arctic Cat M6 EFI 153'' (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
11703-253 A, ARM (LOWER) (INC. 2)A, ARM (LOWER) (INC. 2)
-
21603-895 BEARINGBEARING
-
31703-256 A, ARM (UPPER) (INC. 4)A, ARM (UPPER) (INC. 4)
-
41603-915 BEARINGBEARING
-
50623-952 SCREW, CAPSCREW, CAP
-
60623-664 WASHERWASHER
-
71603-563 AXLE, INNER ARM (UPPER)AXLE, INNER ARM (UPPER)
-
88047-486 NUT, LOCKNUT, LOCK
-
90603-864 TUBE, AXLETUBE, AXLE
-
108020-230 SCREW, CAPSCREW, CAP
-
112606-886 BRACE A, ARM (LOWER)BRACE A, ARM (LOWER)
-
122603-179 AXLE, INNER ARM (LOWER)AXLE, INNER ARM (LOWER)
-
138026-236 SCREW, CAPSCREW, CAP
-
148026-232 SCREW, CAPSCREW, CAP
-
150603-639 TUBE, AXLETUBE, AXLE
-
161603-244 AXLE (POWDER METAL)AXLE (POWDER METAL)
