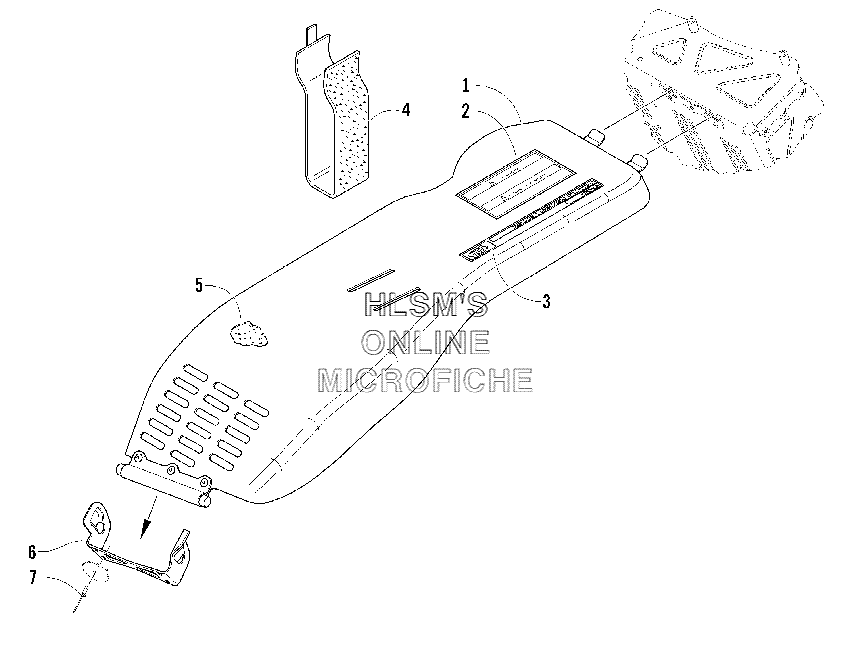

BELT GUARD ASSEMBLY для Arctic Cat M7 EFI 141'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10707-963 GUARD, BELTGUARD, BELT
-
21611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
33611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
40707-582 RETAINER, DRIVE BELTRETAINER, DRIVE BELT
-
50617-497 FOAM, BELT GUARDFOAM, BELT GUARD
-
60607-836 BRACKET, MOUNTINGBRACKET, MOUNTING
-
78061-506 RIVETRIVET
