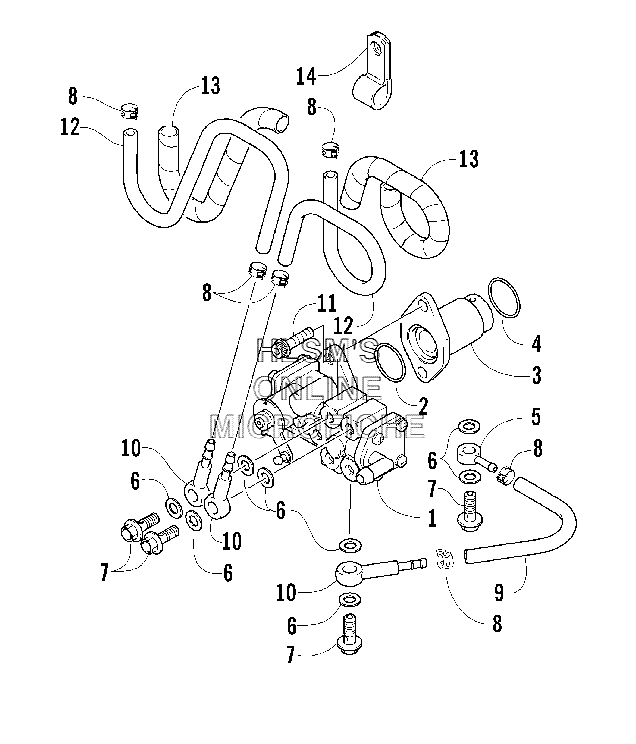

OIL PUMP для Arctic Cat M7 EFI 162'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
13006-978 PUMP, OILPUMP, OIL
-
23008-030 O-RINGO-RING
-
33005-884 RETAINER, OIL PUMP INPUT SHAFTRETAINER, OIL PUMP INPUT SHAFT
-
43005-126 O-RINGO-RING
-
53003-661 UNIONUNION
-
63402-009 GASKETGASKET
-
73004-346 BOLTBOLT
-
83008-037 CLAMP, HOSECLAMP, HOSE
-
93005-357 HOSEHOSE
-
103003-217 VALVE, CHECKVALVE, CHECK
-
113004-893 BOLTBOLT
-
123008-035 HOSE, OILHOSE, OIL
-
133005-032 PROTECTOR, HOSEPROTECTOR, HOSE
-
143005-696 CLAMPCLAMP
