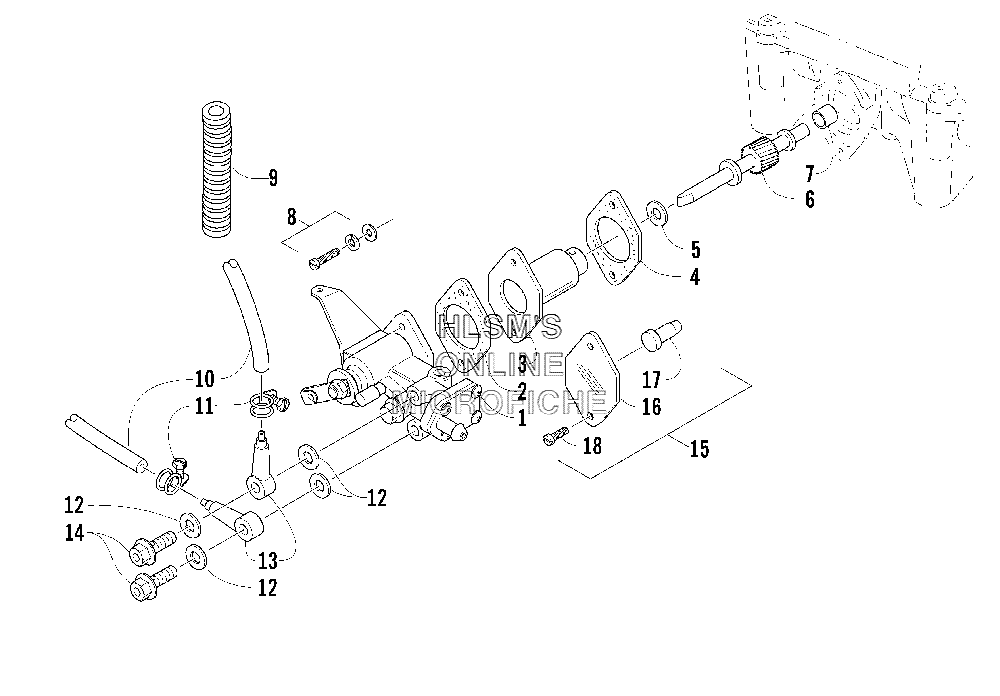

OIL PUMP для Arctic Cat Panther 370 (BLACK) INTERNATIONAL - 2005 года выпуска
-
№АртикулНазвание
-
13005-533 OIL PUMP ASSYOIL PUMP ASSY
-
23004-349 GASKET, OIL PUMPGASKET, OIL PUMP
-
33003-749 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
43004-286 GASKET, RETAINERGASKET, RETAINER
-
53002-749 SHIMSHIM
-
63002-770 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
73003-289 BUSHING, OIL PUMPBUSHING, OIL PUMP
-
83004-373 SCREW W/WASHERSSCREW W/WASHERS
-
93005-032 PROTECTORPROTECTOR
-
103008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
113003-218 CLAMP, HOSECLAMP, HOSE
-
123402-009 GASKETGASKET
-
133003-217 VALVE, CHECKVALVE, CHECK
-
143004-346 BOLT, UNIONBOLT, UNION
-
150636-068 NON, INJECTION KIT (INC. 16, 18)NON, INJECTION KIT (INC. 16, 18)
-
160136-262 PLATE, CRANKCASEPLATE, CRANKCASE
-
170670-101 PLUG, OIL PUMPPLUG, OIL PUMP
-
183004-638 SCREWSCREW
