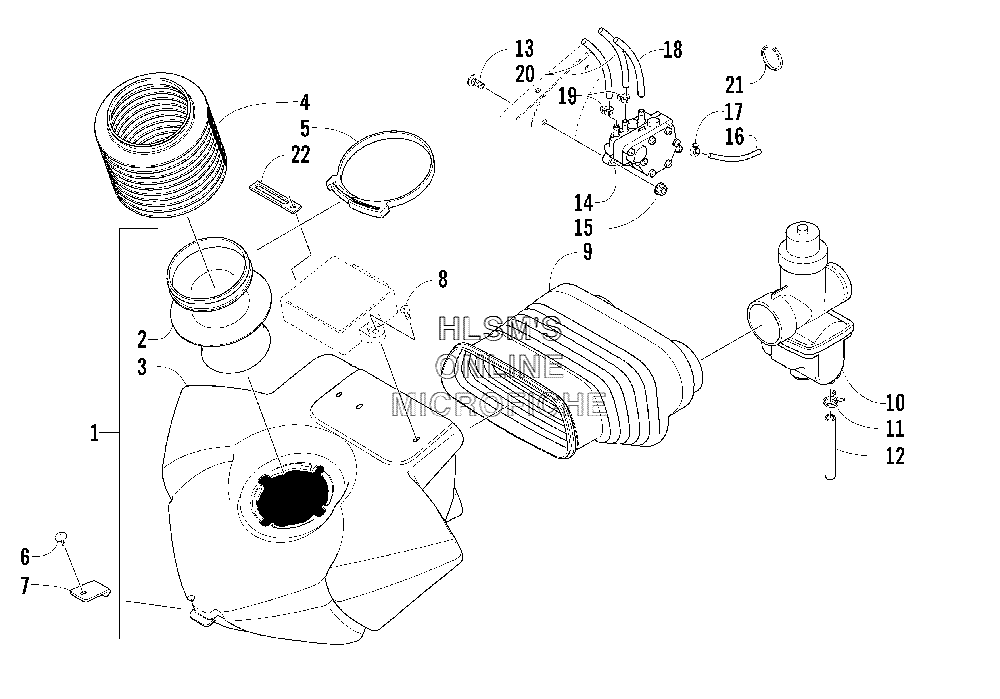

AIR SILENCER ASSEMBLY для Arctic Cat Sabercat 500 LX (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10770-611 SILENCER, AIR, ASSY (INC. 2, 3)SILENCER, AIR, ASSY (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-616 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-581 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100770-697 CARBURETOR, VM34, 612CARBURETOR, VM34, 612
-
110623-652 CLAMP, HOSECLAMP, HOSE
-
120610-442 HOSE, DRAINHOSE, DRAIN
-
138017-582 SCREW, MACHINESCREW, MACHINE
-
141670-537 PUMP, FUELPUMP, FUEL
-
158048-366 NUT, LOCKNUT, LOCK
-
160610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
160610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
171623-351 CLAMP, HOSECLAMP, HOSE
-
180610-007 HOSE, IMPULSEHOSE, IMPULSE
-
191623-233 CLAMP, HOSECLAMP, HOSE
-
206101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
206101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
210123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
223002-964 CLAMP, WIRECLAMP, WIRE
