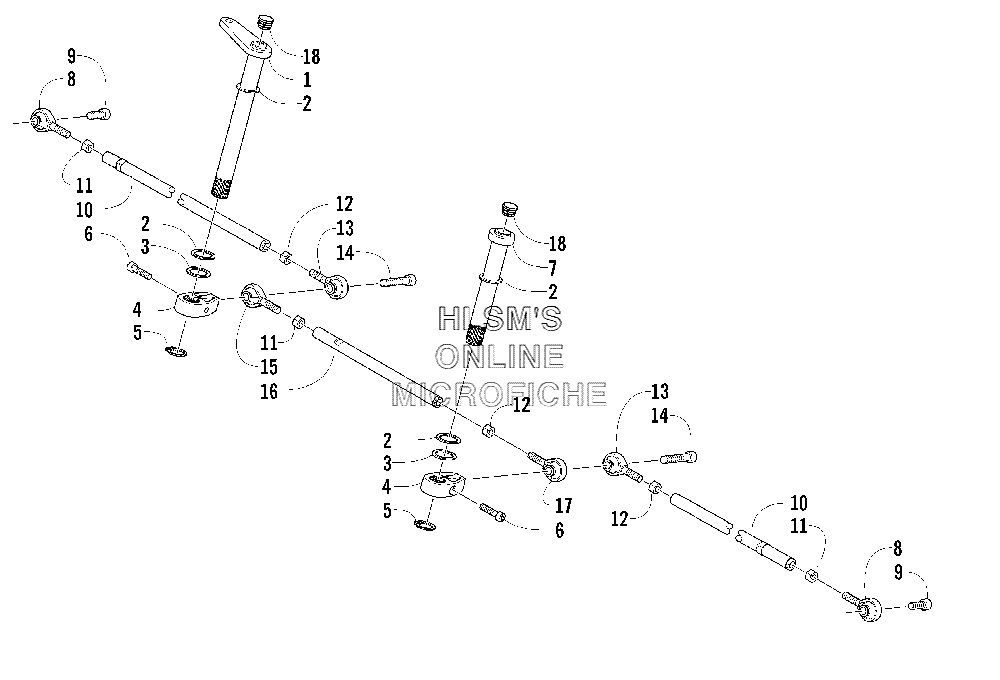

TIE ROD ASSEMBLY для Arctic Cat Sabercat 600 EFI EXT (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10705-397 SHAFT, STEERINGSHAFT, STEERING
-
20623-954 WASHER, THRUSTWASHER, THRUST
-
30623-955 WASHER, THRUSTWASHER, THRUST
-
40605-635 ARM, SHAFTARM, SHAFT
-
50623-956 SNAP RINGSNAP RING
-
68005-584 SCREW, CAPSCREW, CAP
-
71705-045 SHAFT, IDLERSHAFT, IDLER
-
80605-607 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
91623-176 SCREW, CAPSCREW, CAP
-
100605-673 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
110123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
120623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
130605-608 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
140623-957 SCREW, CAPSCREW, CAP
-
150605-605 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
160605-312 TUBE, TIE RODTUBE, TIE ROD
-
170605-606 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
181606-079 PLUGPLUG
