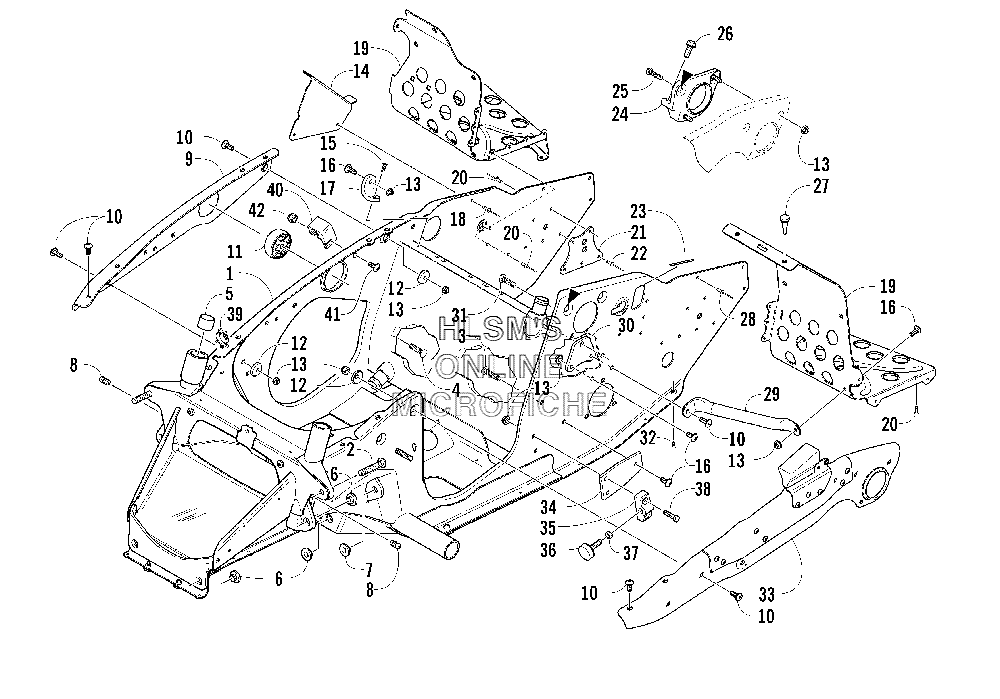

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Sabercat 600 EFI LX (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
-1707-071 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-070 CHASSIS, ASSEMBLY (INC. 2, 8)CHASSIS, ASSEMBLY (INC. 2, 8)
-
21623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-020 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
41623-212 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
50675-161 BEARINGBEARING
-
60607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
70607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
81623-010 FITTING, GREASEFITTING, GREASE
-
90608-364 MOUNT, ENGINEMOUNT, ENGINE
-
102706-806 BRACE, SIDE PLATE (RIGHT)BRACE, SIDE PLATE (RIGHT)
-
118020-040 SCREW, MACHINESCREW, MACHINE
-
120623-943 WASHER, CUPWASHER, CUP
-
138048-366 NUT, LOCKNUT, LOCK
-
148047-366 NUT, LOCKNUT, LOCK
-
152706-153 SUPPORT, SIDE PLATESUPPORT, SIDE PLATE
-
168017-580 SCREW, MACHINESCREW, MACHINE
-
171623-115 SCREWSCREW
-
182706-552 GUARD, HOSEGUARD, HOSE
-
198060-686 RIVETRIVET
-
202606-958 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
202606-959 FOOTREST (LEFT)FOOTREST (LEFT)
-
210623-282 RIVETRIVET
-
222706-151 PLATE, BACKINGPLATE, BACKING
-
230623-341 RIVETRIVET
-
240706-371 TRIMTRIM
-
251623-130 RIVETRIVET
-
263606-178 BUMPER, RUBBERBUMPER, RUBBER
-
278017-579 SCREW, MACHINESCREW, MACHINE
-
282706-517 TUBE, BELT GUARDTUBE, BELT GUARD
-
290607-725 PLATE, BACKINGPLATE, BACKING
-
301623-167 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
312606-939 PLATE, MOUNTING, TORQUE BUMPER, ENGINEPLATE, MOUNTING, TORQUE BUMPER, ENGINE
-
320704-352 MOUNT, TORQUE BUMPER, ENGINEMOUNT, TORQUE BUMPER, ENGINE
-
330608-396 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
348042-486 NUTNUT
-
358002-042 SCREW, CAPSCREW, CAP
-
363706-050 BRACE, SIDE PLATE (LEFT)BRACE, SIDE PLATE (LEFT)
-
370708-467 BRACKET, BEARING SUPPORT (INC. 38, 39)BRACKET, BEARING SUPPORT (INC. 38, 39)
-
381623-410 BOLT, STUD, RIBBEDBOLT, STUD, RIBBED
-
391623-411 BOLT, STUD, RIBBEDBOLT, STUD, RIBBED
-
400623-190 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
418047-426 NUT, LOCKNUT, LOCK
-
428041-246 NUT, LOCKNUT, LOCK
-
430608-432 GUIDE, ROPEGUIDE, ROPE
-
448017-400 SCREW, CAPSCREW, CAP
-
451623-171 CLIPCLIP
-
461623-018 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
