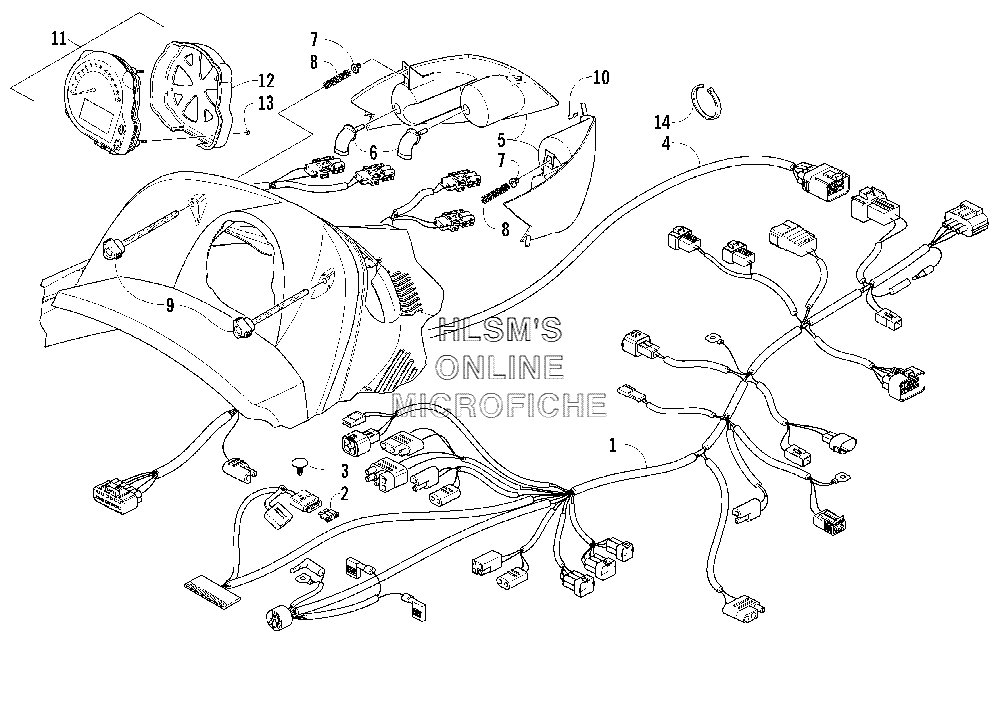

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Sabercat 700 EFI LX (RED) - 2005 года выпуска
-
№АртикулНазвание
-
11686-018 HARNESS, MAIN (INC. 2)HARNESS, MAIN (INC. 2)
-
20630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
30623-589 CLIP, RETAININGCLIP, RETAINING
-
41686-065 HARNESS, HOODHARNESS, HOOD
-
50609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 6)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 6)
-
50609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 6)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 6)
-
60609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
71623-025 INSERTINSERT
-
80623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
101623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
110620-292 TACHOMETER/SPEEDOMETER (INC. 12, 13)TACHOMETER/SPEEDOMETER (INC. 12, 13)
-
120620-281 BRACKET, RETAININGBRACKET, RETAINING
-
130620-280 NUT W/WASHERNUT W/WASHER
-
140123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
